K10 K20 K30 Tungsten Alloy Products Sheet For High Speed Dies And Moulds

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K30 Tungsten Carbide Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Carbide Sheet Grade: K10/K20/K30
Density: 14.5 G/cc Standard: ASTM B578
Hardness: 92 HAR Elastic Modulus: 462 GPa
Packaging: Export Plywood Cases Application: High-Speed Dies
Customized Made: Yes
High Light:

K30 Tungsten Alloy Products Sheet


K10 Tungsten Alloy Sheet


K20 Tungsten Alloy Sheet

Product Description

K10 K20 K30 Tungsten Carbide Sheet For High-Speed Dies And Moulds

Tungsten carbide sheet is mainly made of WC tungsten carbide and co cobalt powder mixed by metallurgical methods through pulverization, ball milling, pressing and sintering. The main alloy components are WC and Co. the component contents of WC and CO in tungsten carbide sheet for different purposes are different, and they are widely used. tungsten carbide sheet is one of many materials of tungsten carbide. It is named after its rectangular sheet (or square), also known as tungsten carbide sheet.


Technological Process

Pulverization → formulation according to application requirements → wet grinding → mixing → crushing → drying → screening → adding molding agent → re drying → preparing mixture after screening → granulation → pressing → forming → sintering → forming (blank) → flaw detection → packaging → warehousing

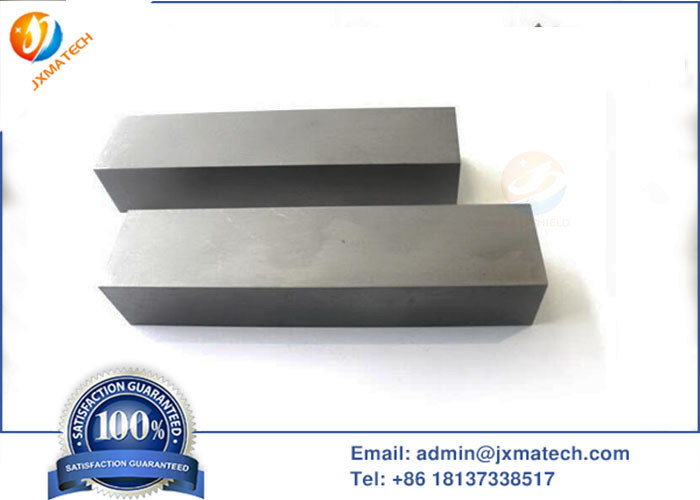

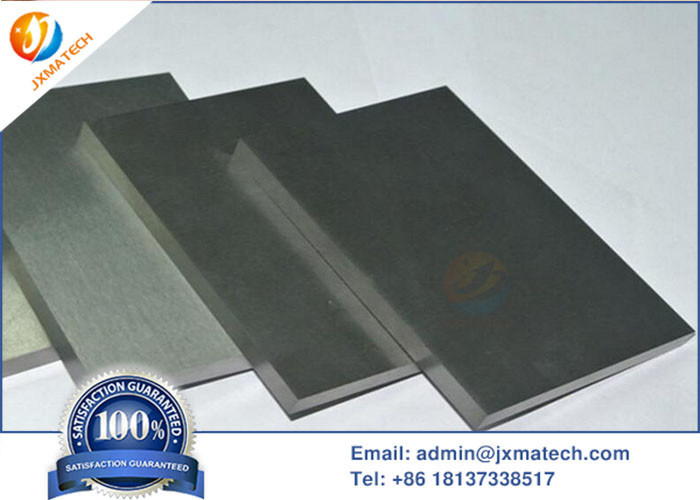

Tungsten Carbide Sheet Picture:

K10 K20 K30 Tungsten Alloy Products Sheet For High Speed Dies And Moulds 0K10 K20 K30 Tungsten Alloy Products Sheet For High Speed Dies And Moulds 1

Tungsten Carbide Sheet Garde & Technical Parameters

Grade Co% Hardness
Flexural strength
Elastic modulus
Thermal expansion coefficient
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches


Performance Characteristics of tungsten carbide sheet

Tungsten carbide sheet has the characteristics of excellent hardness, high hardness, good wear resistance, high elastic modulus, high compressive strength, good chemical stability (acid, alkali and high-temperature oxidation resistance), low impact toughness, low expansion coefficient, and heat conduction and conductivity similar to iron and its alloys.


Application range classification

  • Tungsten carbide molds: 1. Blanking molds for hardware processing 2. Multi station progressive molds
  • Tungsten carbide blades: 1. Woodworking blades 2. tungsten carbide non-standard blades and cutting tools for hardware processing
  • Tungsten carbide wear-resistant and high-temperature parts: 1. Wear-resistant parts on mechanical products 2. High temperature and corrosion-resistant parts in chemical industry
  • Ordinary tungsten carbide plate: 1. Anti radiation shielding plate on electronic equipment; 2. Anti theft reinforcing plate on bank teller machine
