K10 K20 K30 Tungsten Carbide Plates Corrosion Resistant Parts In Chemical Industry

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K10/K20/K30 Tungsten Carbide Plates
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Carbide Plates Grade: K10/K20/K30
Density: 14.5 G/cc Standard: ASTM B578
Hardness: 92 HAR Elastic Modulus: 462 GPa
Packaging: Plywood Cases Application: Corrosion-Resistant Parts
High Light:

K30 Tungsten Carbide Plates


K10 Tungsten Carbide Plates


K20 Tungsten Carbide Plates

Product Description

K10 K20 K30 Tungsten Carbide Plates Corrosion-Resistant Parts In Chemical Industry

Tungsten carbide plates are mainly made of WC tungsten carbide and cobalt powder by metallurgical mixing, crushing, ball milling, pressing and sintering. The main components are WC and Co. WC and CO contents in tungsten carbide plates for different purposes are different and have a wide range of applications. Tungsten carbide plate is one of many materials of tungsten carbide.


Technological Process of Tungsten Carbide Plates

Pulverization → formulation according to application requirements → wet grinding → mixing → crushing → drying → screening → adding molding agent → re drying → preparing mixture after screening → granulation → pressing → forming → sintering → forming (blank) → flaw detection → packaging → warehousing

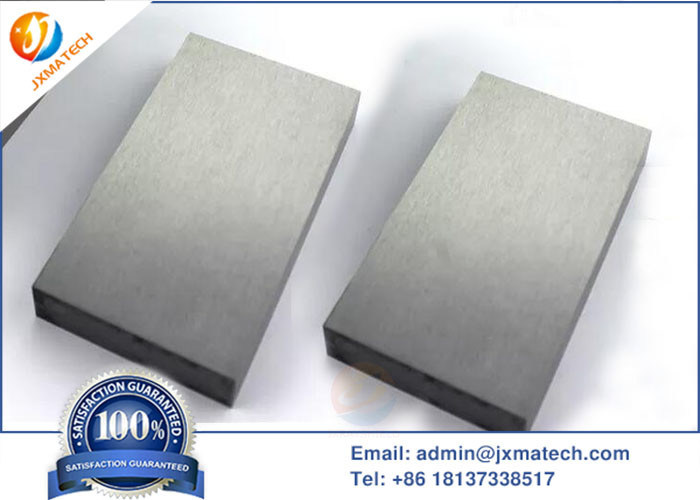

Tungsten Carbide Plates Picture:
K10 K20 K30 Tungsten Carbide Plates Corrosion Resistant Parts In Chemical Industry 0K10 K20 K30 Tungsten Carbide Plates Corrosion Resistant Parts In Chemical Industry 1

Tungsten Carbide Plates Garde & Technical Parameters

Grade Co% Hardness
Flexural strength
Elastic modulus
Thermal expansion coefficient
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches



Performance characteristics of tungsten carbide plates

Cemented carbide plate has the advantages of excellent hardness, high hardness, good wear resistance, high elastic modulus, high compressive strength, good chemical stability (acid, alkali and high temperature oxidation resistance), low impact toughness, low expansion coefficient and good heat resistance.


Scope of application

Tungsten carbide plates are mainly used to manufacture high-speed molds and multi-station progressive dies, used for punching copper, aluminum, stainless steel, cold rolled plates, EI plates, Q195, SPCC, silicon steel sheets, hardware, standard parts, upper and lower punches, etc. Sheet. It is also an excellent material for manufacturing high-temperature parts, wear-resistant parts, anti-shielding parts and corrosion-resistant parts. Tungsten carbide plates with appropriate materials should be selected according to the specific application.
