Cemented Tungsten Alloy Products Sheet High Hardness And Wear Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Tungsten Steel Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Steel Sheet Grade: K10/K20/K30/K40
Density: 14.5 G/cc Standard: ASTM B578
Hardness: 93 HAR Elastic Modulus: 465 GPa
Packaging: Exporting Plywood Cases Application: High-quality Die Molds
Customized Made: Available
High Light:

Tungsten Alloy Products Sheet


High Hardness Tungsten Alloy Sheet


Wear Resistance Tungsten Alloy Sheet

Product Description

Cemented Tungsten Steel Sheet With High Hardness And Wear Resistance

Tungsten steel plate is mainly made of tungsten carbide, tungsten carbide and cobalt powder through metallurgical methods such as grinding, ball milling, pressing, and sintering. The main alloy components are WC and Co. The content of WC and Co in tungsten steel plates for different purposes is different, so it is widely used. It is named after its rectangular thin plate (or square), also known as tungsten steel plate.


Technological Process of Tungsten Steel Sheet

Pulverization → formulation according to application requirements → wet grinding → mixing → crushing → drying → screening → adding molding agent → re drying → preparing mixture after screening → granulation → pressing → forming → sintering → forming (blank) → flaw detection → packaging → warehousing


Tungsten Steel Sheet Garde & Technical Parameters

Grade Co% Hardness
Flexural strength
Elastic modulus
Thermal expansion coefficient
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches

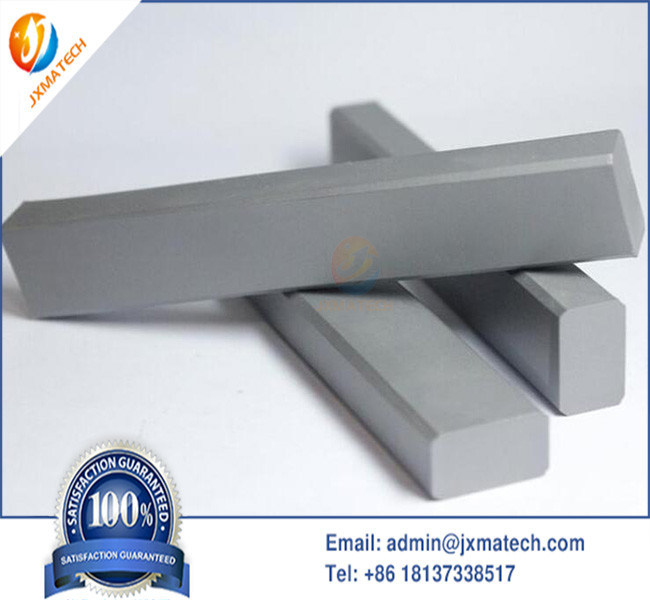

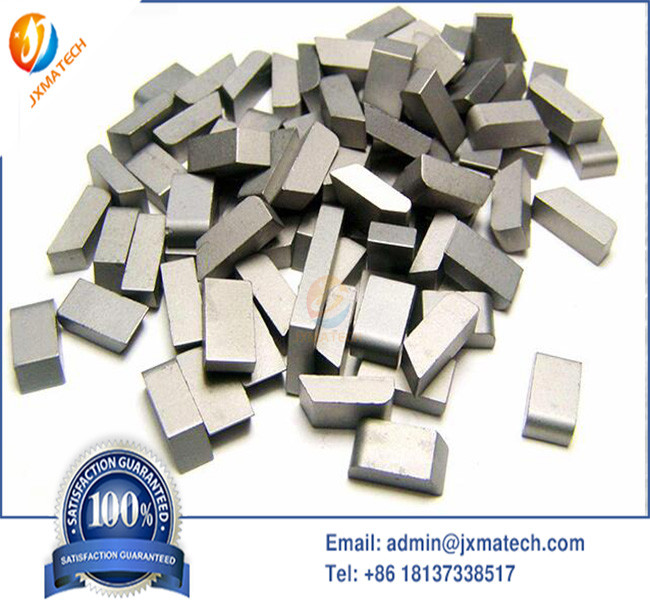

Cemented Tungsten Alloy Products Sheet High Hardness And Wear Resistance 0Cemented Tungsten Alloy Products Sheet High Hardness And Wear Resistance 1

Properties of tungsten steel sheet

Tungsten steel plate has excellent hardness, wear resistance, elastic modulus, compressive strength, chemical stability (acid resistance, alkali resistance, high temperature and oxidation resistance), at the same time, low impact toughness, low expansion coefficient, good heat resistance, etc.


Classification of Application Range

  • Tungsten steel mold: 1. Hardware blanking mold processing 2. Multi-station progressive die

  • Tungsten steel blade: 1. Woodworking blade 2. Tungsten carbide non-standard blades and knives for metal processing

  • Tungsten steel wear-resistant and high-temperature resistant components: 1. Wear-resistant parts on mechanical products 2. High temperature and corrosion resistant parts in the chemical industry

  • Ordinary tungsten steel sheet: 1. Anti-radiation shielding board on electronic equipment; 2. Anti-theft strengthening board for bank ATM
