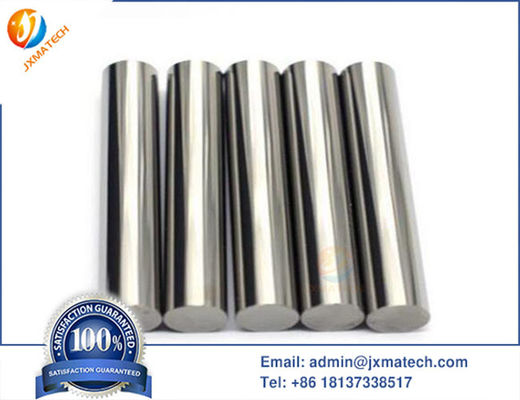

K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance
K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance
K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance

K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K10/K20/K30 Tungsten Carbide Rod
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Tungsten Carbide Rod Type: K10/20/30
Density: 14.34 G/cc Standard: ASTM B578-2010
Hardness: 102 HAR Elastic Modulus: 485 GPa
Packaging: Export Plywood Cases Application: Injection Molding
High Light:

K30 Pure Tungsten Rod

,

K20 Pure Tungsten Rod

,

K10 Pure Tungsten Rod

Product Description

K10 K20 K30 Tungsten Carbide Rod With Good Wear And Bending Resistance

Tungsten carbide rod is mainly made of WC tungsten carbide and cobalt alloy powder by metallurgically mix, crush, ball mill, press and sinter. The main components are WC and Co. Tunsten carbide and Co contents in tungsten carbide rod for different purposes are different and have a wide range of applications. In a large range, cemented carbide has both good hardness and toughness, so it has become the most widely applicable hard material and is widely used in engineering and tool products.



Processing of tungsten carbide rod

  • Cemented carbide may be damaged or deficient due to impact or excessive processing load.
  • During processing, please confirm that the product has been firmly fixed on the installation platform without looseness before operation.
  • Cemented carbide is not impact resistant. Do not use metal hammer.
  • Cemented carbide is not easy to be adsorbed on magnet. When using magnet (magnet), please confirm that the product has been firmly fixed before operation.
  • The machined surface after grinding and grinding is extremely smooth and the edges and corners are very sharp. Please pay full attention when taking processed products.

Specifications Table of tungsten carbide rod

WC bar / rod Diameter Length
Type Size (mm) Tolerance (mm) Size (mm) Tolerance (mm)
JX040-50 4 +0.2～0.4 50 1
JX050-50 5 +0.2～0.4 50 1
JX060-50 6 +0.2～0.4 50 1
JX060-60 6 +0.2～0.4 60 1
JX080-60 8 +0.2～0.4 60 1
JX100-75 10 +0.2～0.4 75 1.5
JX100-100 10 +0.2～0.4 100 2
JX120-75 12 +0.2～0.4 75 1.5
JX120-100 12 +0.2～0.4 100 2
JX140-100 14 +0.3～0.5 100 2
JX160-100 16 +0.3～0.5 100 2
JX200-100 20 +0.3～0.5 100 2

K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance 0K10 K20 K30 Pure Tungsten Rod With Good Wear And Bending Resistance 1

Application of tungsten carbide rod

Tungsten carbide rod is mainly used to make various metal and non-metal cutting tools, such as PCB micro drill, drill bit, end mill, reamer, etc. it is used to process aluminum alloy, stainless steel, heat-resistant alloy steel, nodular cast iron, nickel base and titanium alloy, non-ferrous metal and other products. Tungsten steel bars are also widely used in stamping tools and wear-resistant tools, such as plug-ins of various shapes, silicon

steel sheets and cold-rolled plates, punches, thimbles and punching needles of stainless steel.
