W80Cu20 Copper Tungsten Alloy Products Tungsten Copper Tube

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: Tungsten Copper Tube
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: W80Cu20 Tungsten Copper Tube Copper Tungsten Alloy
High Light:

W80Cu20 Copper Tungsten Alloy Tube


W80Cu20 Tungsten Copper Tube


ISO9001 Tungsten Copper Tube

Product Description

W80Cu20 Tungsten Copper Tube Copper Tungsten Alloy


Tungsten Copper Tube have been widely used in Spark Erosion and Electrical Discharge Machining (EDM) process. In general, this process is used with graphite, but tungsten has a high melting point.
This allows the CuW electrodes to have a longer service life than the graphite electrodes. This is crucial when the electrodes have been processed with complex machining.
Since the electrodes are susceptible to wear the electrodes provide more geometrical accuracy than the other electrodes.


Because of the high eletrical conductivity and low consumption, copper tungsten alloy bar are widely used to make grid siderod, lead, support, electrode for the gas discharge lamp.

Tungsten Copper Tube is composed of tungsten and copper, which own the excellent performances of tungsten and copper, such as good heat-resistant, ablate-resistant, high-intensity, excellent thermal and electrical conductivity.

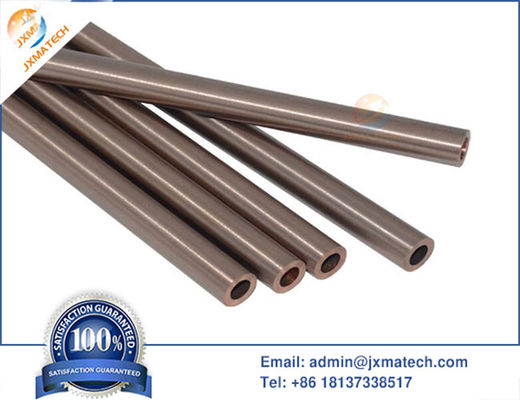

Tungsten Copper Tube Picture:
W80Cu20 Copper Tungsten Alloy Products Tungsten Copper Tube 0W80Cu20 Copper Tungsten Alloy Products Tungsten Copper Tube 1W80Cu20 Copper Tungsten Alloy Products Tungsten Copper Tube 2
Copper tungsten alloy is widely used as heat sinks concerning with radiator for car, refrigeration and air conditioning systems because of its low thermal expansion, heat-resistant, ablate-resistant, excellent thermal and electrical conductivity.

Copper tungsten alloy heat sinks galvanically plated with Ni or NiAu or electroless Ni plated Semi-finished products: up to 100x100mm with a thickness of 0.5 to 50mm. Tungsten copper heat sink with advantages of high thermal conductivity, excellent hermeticity and excellent flatness.

Copper Tungsten Electrical Contacts
Electrical contacts are subjected to extreme mechanical and thermal stresses during operation. For fractions of a second, temperatures rise to several thousand degrees as a result of the arcing.
Our copper tungsten alloy materials are used owing to their unique physical properties.
Copper tungsten alloy electrical contacts have good resistance to arc erosion, mechanical wear, contact welding and good conductivity.

Copper tungsten alloy electrical contacts are widely used as contact tips and contact electrode.

These properties also let the rods and tubes manufactured for spark erosion be smaller in diameter and longer in length since the material is less likely to chip and warp.

We specialize in manufacturing and offering tungsten related products for more than 20 years, and can provide WCu alloy as bellows:

Our copper tungssten alloy electrode is suitable for EDM machining of those materials.
Advantages: low wear, high contour sharpness,good machinability.
Tungsten copper electrode is a good use of high-purity tungsten metal powder and high purity characteristics of the plasticity of copper powder.
Tungsten copper electrodes can be divided into EDM electrode, high-voltage electrode discharge tube and electronic packaging materials.
