W75cu25 W80cu20 Copper Tungsten Alloy Products High Temperature Sintering

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: Copper Tungsten Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: Copper Tungsten Alloy
High Light:

W80cu20 Copper Tungsten Alloy Products


W75cu25 Copper Tungsten Alloy Products


W75cu25 tungsten copper bar

Product Description

High Quality W75cu25 W80cu20 Copper Tungsten Alloy On Sale With Best Price


Copper Tungsten Alloy High Temperature Sintering

The tungsten-copper alloy is an alloy composed of tungsten and copper.
The copper content of common alloys is 10% to 50%.
The alloy is prepared by copper tungsten alloy powder metallurgy method and has good electrical and thermal conductivity, good high temperature strength and certain plasticity.
At very high temperatures, such as above 3000℃, the copper in the alloy is liquefied and evaporated, which absorbs a large amount of heat and lowers the surface temperature of the material.
So this type of material is also known as metal sweating material.

Since the Copper Tungsten Alloy two metals are incompatible with each other, the tungsten-copper alloy has low expansion property of tungsten, abrasion resistance, corrosion resistance, high electrical and thermal conductivity with copper, and is suitable for various mechanical processes.
The process of preparing tungsten-copper alloy by powder metallurgy method is: milling – batching mixing – pressing forming – sintering infiltration – cold working.


Copper tungsten alloy high temperature sintering, The tungsten-copper or molybdenum-copper mixed powder is subjected to press molding and then sintered in a liquid phase at 1300 to 1500℃.
The material prepared by this method has poor uniformity and many closed voids, and the resulting density is usually lower than 98%.
However, the sintering activity can be improved by adding a small amount of nickel to the activated sintering method, mechanical alloying method or oxide reduction method to prepare ultra-fine and nano powder, so as to improve the density of tungsten-copper and molybdenum-copper alloys.
However, nickel activation sintering can significantly reduce the conductivity and thermal conductivity of the material, and mechanical alloying can also reduce the conductivity of the material by introducing impurities.
It is difficult to prepare powder by oxide co-reduction method because of complicated process and low production efficiency.

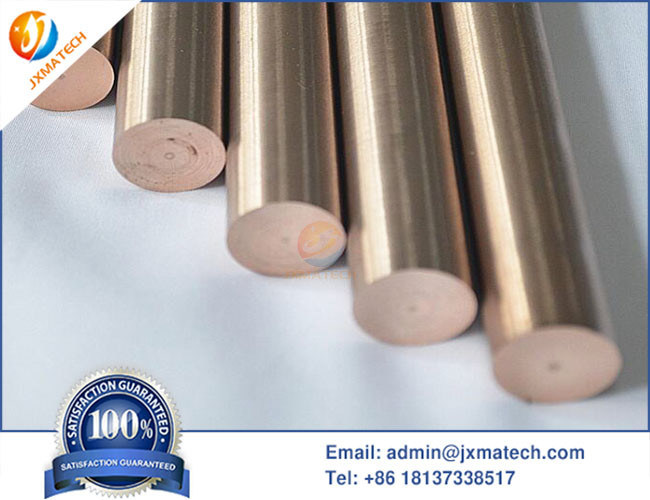

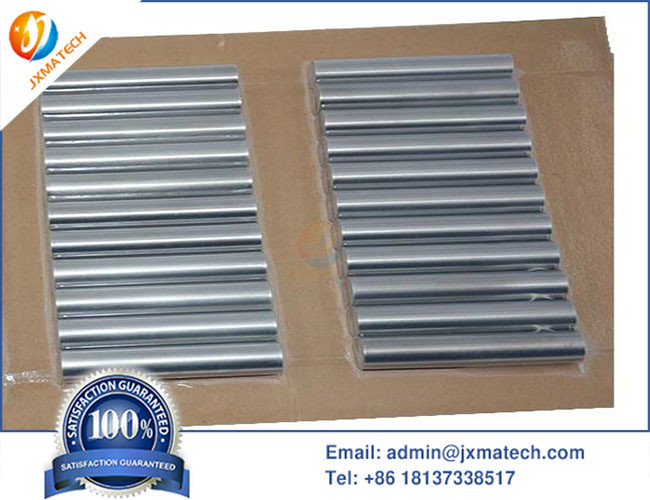

Copper Tungsten Alloy Picture:


W75cu25 W80cu20 Copper Tungsten Alloy Products High Temperature Sintering 0W75cu25 W80cu20 Copper Tungsten Alloy Products High Temperature Sintering 1W75cu25 W80cu20 Copper Tungsten Alloy Products High Temperature Sintering 2
