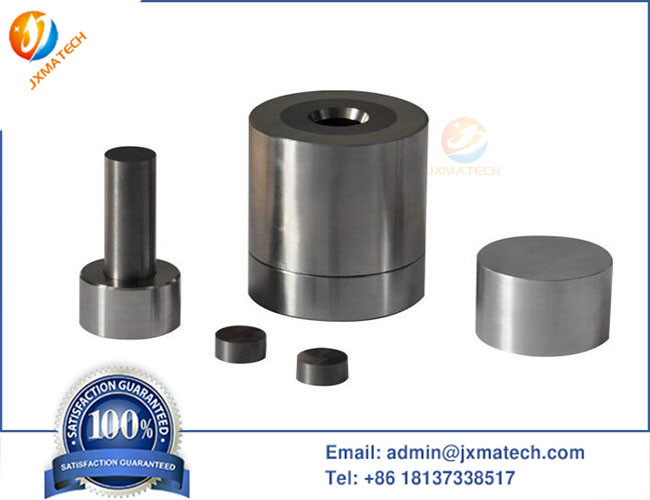

Cemented YG6 Tungsten Steel Mould For Hardware Processing Industry

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: YG6 Tungsten Steel Mould
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, Western Union, D/A
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Steel Mould Hardness: 58-60 HRC
Electric Discharge Processing Precision: 0.02mm Density: 14.41 G/cc
Model Number: Available Application: Punching/forging/stamping/drawing/nut Forming Dies
Grade: YG-6 Standard: ASTM B578-2010
High Light:

YG6 Tungsten Steel Mould

,

Hardware Processing Tungsten Steel Mould

,

YG6 Cemented Steel Mould

Product Description

Cemented YG6 Tungsten Steel Mould For Hardware Processing Industry

Tungsten Steel Mould is made of tungsten steel, tungsten steel is a kind of alloy material made of refractory metal hard compound and metal combined by powder metallurgy process. Tungsten steel has good wear resistance, high hardness, good toughness, high strength, as well as heat resistance, corrosion resistance and a series of excellent properties. Especially high hardness, good wear resistance. Constant performance even at 500℃. It still has high hardness and toughness at 1000℃.



Various grades of tungsten steel mould

Grade Int'l Grade Density Hardness Bending strength Applications
YG8 K30 14.8 89.5 ≥3500 It is applicable to high strength, impact resistance and earthquake resistance. It is suitable for making forming knives and wear-resistant parts.
YG11 K40 14.4 88.5 ≥3650 It is suitable for making stamping abrasives.
YG15 K40 14 87.5 ≥3800 It is suitable for making stamping die (processing silicon steel sheet), wear-resistant and consumable parts, etc.
YG20 / 13.5 85.5 ≥4200 It has high strength. It is suitable for making stamping dies such as progressive die.
YG6X K10 14.9 91.5 ≥3200 It is a fine-grained alloy with good wear resistance. It is suitable for making forming knives and wear-resistant parts.
YL10.2 K10 14.5 92 ≥3850 It is an ultra-fine particle alloy with high wear resistance, bending strength, adhesion resistance and pad strength. Suitable for low speed rough machining.

Cemented YG6 Tungsten Steel Mould For Hardware Processing Industry 0Cemented YG6 Tungsten Steel Mould For Hardware Processing Industry 1

Cemented YG6 Tungsten Steel Mould For Hardware Processing Industry 2

Product features of tungsten steel mould:

1. High hardness, good wear resistance and long service life

2. Excellent thermal stability and high temperature deformation resistance

3. Good thermal shock resistance, high thermal conductivity.

4. Excellent oxidation control ability, corrosion resistance at high temperature.

5. Excellent anti-chemical corrosion resistance.

6. Pressing mold specifications are complete and the process is mature.



Application of tungsten steel mould:

  • Mould for battery case and toothpaste skin; Small size steel ball, screw, nut stamping die, impact forging die and red die, etc
  • Manufacture cold heading, cold punching and cold pressing moulds for standard parts, bearings, tools and other industries; Stamping dies for warheads and casings, etc.
