YG-8 Tungsten Carbide Mould For Punching And Forging Tool

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Tungsten Carbide Moulds For Punching And Forging Tool
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, Western Union, D/A
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Carbide Moulds For Punching And Forging Tool Hardness: 57-62 HRC
Electric Discharge Processing Precision: 0.03mm Advantage: Control Quality
Model Number: Customized Application: Punching/forging/stamping/drawing/nut Forming Dies
Grade: YG-8 Standard: ASTM B578-2011
Highlight:

YG-8 Tungsten Carbide Mould

,

Tungsten Carbide Mould For Punching

,

Forging Tool Tungsten Carbide Mould

Product Description

Tungsten Carbide Moulds For Punching And Forging Tool

Tungsten Carbide Moulds For Punching And Forging Tool are made of tungsten steel. Tungsten steel is an alloy material made from refractory metals and hard compounds that bond metals through powder metallurgy. Tungsten steel has good wear resistance, high hardness, high toughness, high strength, heat resistance and corrosion resistance and a series of excellent properties. In particular, it has higher hardness and better wear resistance. It maintains the same performance even at 500°C. It still has high hardness and toughness at 1000°C.



Parameters of Tungsten Carbide Moulds

Grade Int'l Grade Density Hardness Bending strength Application
YG8 K30 14.8 89.5 ≥3500 It is applicable to high strength, impact resistance and earthquake resistance. It is suitable for making forming knives and wear-resistant parts.
YG11 K40 14.4 88.5 ≥3650 It is suitable for making stamping abrasives.
YG15 K40 14 87.5 ≥3800 It is suitable for making stamping die (processing silicon steel sheet), wear-resistant and consumable parts, etc.
YG20 / 13.5 85.5 ≥4200 It has high strength. It is suitable for making stamping dies such as progressive die.
YG6X K10 14.9 91.5 ≥3200 It is a fine-grained alloy with good wear resistance. It is suitable for making forming knives and wear-resistant parts.
YL10.2 K10 14.5 92 ≥3850 It is an ultra-fine particle alloy with high wear resistance, bending strength, adhesion resistance and pad strength. Suitable for low speed rough machining.

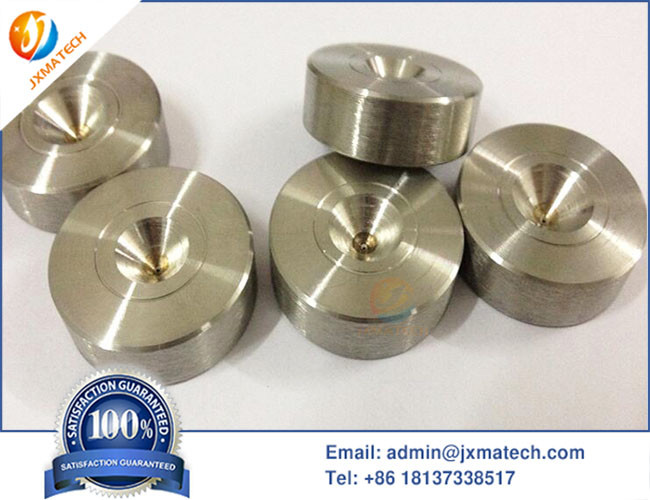

Tungsten Carbide Moulds Picture:

YG-8 Tungsten Carbide Mould For Punching And Forging Tool 0YG-8 Tungsten Carbide Mould For Punching And Forging Tool 1



Product features of Tungsten Carbide Moulds

1. Corrosion resistance and wear resistance

2. High pressure resistance, long service life

3. Impact resistance and wear-resistant alloy products

4. High precision, can be customized according to the drawings



Application of Tungsten Carbide Moulds

  • All kinds of metal and non-metal powder pressing and stamping, high compression rate of steel rod, steel pipe stretching, forging, punching and stamping die under high stress, machine parts, die core, making stamping die, such as stamping watch parts, musical instrument spring sheet, etc.;
  • Mould for battery case and toothpaste skin; Small size steel ball, screw, nut stamping die, impact forging die and red die, etc
  • Manufacture cold heading, cold punching and cold pressing moulds for standard parts, bearings, tools and other industries; Stamping dies for warheads and casings, etc.
