Product Description

Tungsten Copper Alloy Copper Tungsten Bar W70Cu30


Top grade W50-W90% Copper Tungsten Bar

(WCu 85/15 80/20 75/25) Copper Tungsten Bar

Material: W50-90 Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy rods size: diameter(3-100mm)*L<500mm
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm

Copper Tungsten Bar​ application
-1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors;
-2. Electrodes in electric spark erosion cutting machines;
-3. Electrodes for resistance welding;used where the combination of high heat resistance, high electrical

Copper Tungsten Bar Specification:
Material: W50-90Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: diameter(3-100mm)*L<500mm

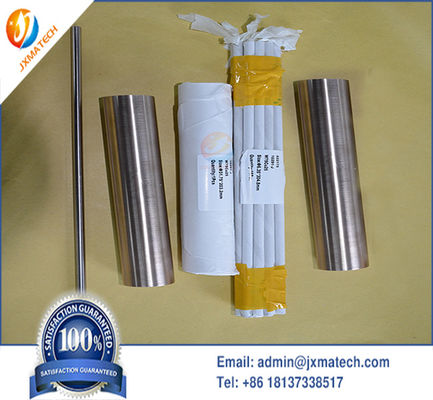

Copper Tungsten Bar Picture:

Pure tungsten/molybdenum rod surface finish:
Black: surface is as swaged or as drawn, retaining a ciating of processing lubricants and oxides.
Cleaned: Surface is chemically cleaned to removed all lubricants and oxides.
Ground: Surface is centerless to ground to remove all coating and to achieve precise diameter control.

We can produce various sizes Tungsten Copper Bar as per customers' request.
