Tungsten W Foil Tape
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JX |
| Certification: | ISO |
| Model Number: | W80cu20 Tungsten Copper Alloy Wcu in Electronic Packaging Material in Hot Sale |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | according to actual products |
| Packaging Details: | standard packing |
| Delivery Time: | 25days |
| Payment Terms: | T/T |
| Supply Ability: | 300kgs month |
|
Detail Information |
|||
| Size: | As Request | Quality: | ISO9001:2008 |
|---|---|---|---|
| Surface: | Polishing,burnishing,black Surface | Delivery Time: | 25days |
| Packing: | Standard Exporting | Name: | W80cu20 Tungsten Copper Alloy Wcu In Electronic Packaging Material In Hot Sale |
| Highlight: | W80cu20 Tungsten Copper Alloy,Wcu Tungsten Copper Alloy,Electronic Packaging Tungsten Copper Alloy |
||
Product Description
2022 Big Sale W50-W90% Tungsten Copper Alloy Supplier
Product information:
Material: W50-90Cu10-50
Brand:W55Cu45,W60Cu40,W70Cu30, W75Cu25, W80Cu20, W85Cu15, W90Cu10
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy rods size: dia(3.0-200mm)*L
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu Flatness tolerance:<4um
WCuRoughness:Ra1.6-Ra0.8
WCuSurface: polished, ground.
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size see following attachment
WCu tungsten copper alloy application and performance:
1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors;
2. Electrodes in electric spark erosion cutting machines;
3. Electrodes for resistance welding;used where the combination of high heat resistance, high electrical
4. Some of the applications are in electric resistance welding, as electrical contacts, and as heat sinks.
5. As contact material the alloy is resistant to erosion by electric arc. WCu alloys are also used in electrodes for electrical discharge machining and electrochemical machining.

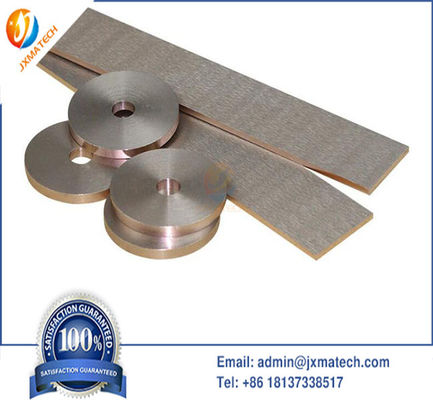

Tungsten Copper Alloy Picture:
Advantages of Copper Tungsten Plates:
1. Better heat resistant;
2. Better ablate-resistant;
3. High intensity
4. High density;
5. Excellent thermal and electrical conductivity;
6. Easy to be machined.
We can produce various sizes Tungsten Copper Bar as per customers' request.
| Code No. | Chemical Composition % | Mechanical properties | ||||||
| CU | Impurity | W | Density | RES( cm) | ||||
| (g/cm 3 ) | Hardness | Conductivity | TRS/ Mpa | |||||
| HB | IACS/ % | |||||||
| CuW(50) | 50 + 2.0 | 0.5 | Balance | 11.85 | 115 | 3.2 | 54 | |
| CuW(55) | 45 + | 0.5 | Balance | 12.3 | 125 | 3.5 | 49 | |
| 2 | ||||||||
| CuW(60) | 40 + 2.0 | 0.5 | Balance | 12.75 | 140 | 3.7 | 47 | |
| CuW(65) | 35 + 2.0 | 0.5 | Balance | 13.3 | 155 | 3.9 | 44 | |
| CuW(70) | 30 + 2.0 | 0.5 | Balance | 13.8 | 175 | 4.1 | 42 | 790 |
| CuW(75) | 25 + 2.0 | 0.5 | Balance | 14.5 | 195 | 4.5 | 38 | 885 |
| CuW(80) | 20 + 2.0 | 0.5 | Balance | 15.15 | 220 | 5 | 34 | 980 |
| CuW(85) | 15 + 2.0 | 0.5 | Balance | 15.9 | 240 | 5.7 | 30 | 1080 |
| CuW(90) | 10 + 2.0 | 0.5 | Balance | 16.75 | 260 | 6.5 | 27 | 1160 |
| If you need this products, please feel free to contact us. | ||||||||
