W70Cu30 W80Cu20 copper tungsten pipe Tungsten Copper Alloy Tube / Pipe

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: W70Cu30 W80Cu20 Copper Tungsten Pipe Tungsten Copper Alloy Tube / Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: W70Cu30 W80Cu20 Copper Tungsten Pipe Tungsten Copper Alloy Tube / Pipe
Highlight:

W75Cu Tungsten Copper Alloy Tube

,

W75Cu Tungsten Copper Alloy Pipe

,

W70Cu Tungsten Copper Alloy Tube

Product Description

W70Cu30 W80Cu20 Copper Tungsten Pipe Tungsten Copper Alloy Tube / Pipe

1. Copper Tungsten Pipe specification:
1) WCu (W70Cu, W75Cu, W80Cu, W85Cu, W90Cu, etc)
2) Density:16-18.8g/cm3
3) Size:As your need
Plate: (0.04-50)* W X L
rod-Dia.1.5 - 200 X 300mm Long

4) Flatness tolerance:<4um
5) Roughness:Ra1.6-Ra0.8
6) Surface: polished, ground.



2. Property Brief Introduction
W-Cu heat sink material is a composite of tungsten and copper, with both tungsten low expansion characteristics, but also has copper of high thermal conductivity properties, and the tungsten and copper in the thermal expansion coefficient and thermal conductivity can be adjusted with the W-Cu composition, also the composite can be machined to various shape, these features make the application of this composite with great convenience.
1) high melting point, high strength,
2) smooth and clean surface,
3) good conductions, small linear expansion coefficient and good heat-resistance

3.
Copper Tungsten Pipe Chemical composition

Material WCu%
Tungsten Content
Hardness
HB
g/
Density at 20ºC
W/M.K
Thermal conductivity at 25ºC
(10-6/k)
Coefficient of thermal expansion at 20ºC
W90Cu10 90 260 17.0 180-190 6.5
W85Cu15 85 240 16.4 190-200 7.0
W80Cu20 80 220 15.6 200-210 8.3
W75Cu25 75 195 14.9 220-230 9.0
W50Cu50 50 125 12.2 310-340 12.5

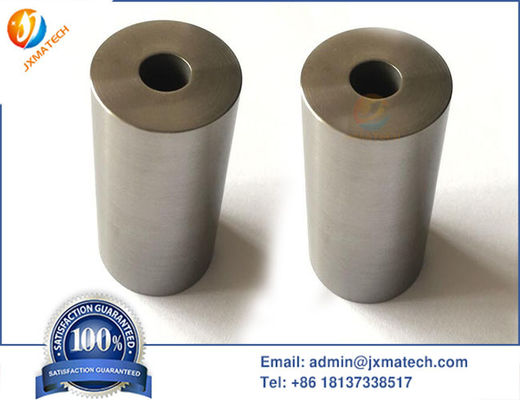

Copper Tungsten Pipe Picture:
W70Cu30 W80Cu20 copper tungsten pipe Tungsten Copper Alloy Tube / Pipe 0W70Cu30 W80Cu20 copper tungsten pipe Tungsten Copper Alloy Tube / Pipe 1

4.Copper tungsten alloy--Tungsten Copper Composite Features:
No Fe, Co, Ni, Mn and other elements added as the sintering activator, to maintain a high thermal conductivity
Excellent hermeticity
Can provide semi-finished or finished (Ni/Au plated) products
Precision machining and excellent dimensional control, surface finish and flatness
With close technical support including product design, custom manufacturing, testing and post sale supports.


Top grade W50-W90% Copper Tungsten Pipe supplier
Material: W50-90Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: the main sizes see attachment
WCu alloy rods size: diameter(3-100mm)*L<500mm
