10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface 10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface 10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface 10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface

10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: 10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month
Contact Now

Detail Information
Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: 10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface
High Light:

500mm Tungsten Copper Alloy Tubes

,

10mm Tungsten Copper Alloy Tubes

,

500mm Tungsten Copper Alloy pipe

Product Description

10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface

Tungsten Copper Alloy Tubes Description


The alloy is the composite of tungsten and copper which own he excellent performance of tungsten and copper

Tungsten Copper Alloy Tubes Specification:
Surface: Ground, polished
Dia:2-100mm.
Length: 10-500mm
W/Cu: W(50-90%)/Cu(10-50%)

Tungsten Copper Alloy Tubes Character:
1.better heat resistant;
2.better ablate-resistant;
3.high intensity
4.high density;
5.excellent thermal and electrical conductivity;
6.easy to be machined.

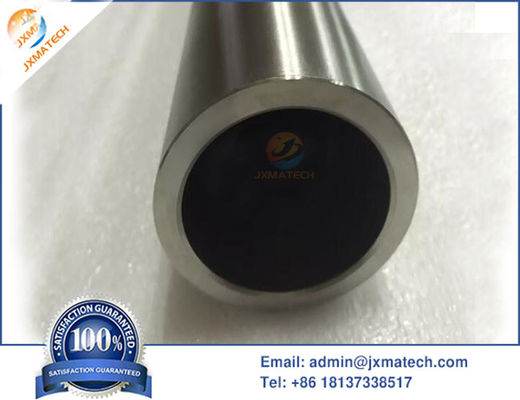

Tungsten Copper Alloy Tubes  Picture:
10mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface 010mm-500mm Tungsten Copper Alloy Tubes Copper Tungsten Pipe Polishing Surface 1
Tungsten Copper Alloy Tubes  Application:
1) Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors
2) Electrodes in electric spark erosion cutting machines
3) Heat sinks as passive cooling elements of electronic devices
4) Electrodes for Resistance Welding


Brand and NO.
Chemical components%
Physical properties


Cu
Total impurities
≤

W
Density
(g/cm³)
≥
Hardness
HB
≥
Resistivity
(µΩ·cm) ≤
Conductivity
IACS%≥
Bending strength
Mpa≥

CuW(50)
50±2.0
0.5
Bal.
11.85
115
3.2
54

CuW(55)
45±2.0
0.5
Bal.
12.30
125
3.5
49

CuW(60)
40±2.0
0.5
Bal.
12.75
140
3.7
47

CuW(65)
35±2.0
0.5
Bal.
13.30
155
3.9
44

CuW(70)
30±2.0
0.5
Bal.
13.80
175
4.1
42
790

CuW(75)
25±2.0
0.5
Bal.
14.50
195
4.5
38
885

CuW(80)
20±2.0
0.5
Bal.
15.15
220
5.0
34
980

CuW(85)
15±2.0
0.5
Bal.
15.90
240
5.7
30
1080

CuW(90)
10±2.0
0.5
Bal.
16.75
260
6.5		 27
1160
