0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace
0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace 0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace 0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace 0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace

0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: Tzm Sheet, Tzm Plate in High Temperature Furnace
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month
Contact Now

Detail Information
Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: Tzm Sheet, Tzm Plate In High Temperature Furnace
High Light:

4MM Tzm Sheet

,

0.3MM Tzm Sheet

,

4MM Tzm Plate

Product Description

Tzm Sheet, Tzm Plate in High Temperature Furnace

introduction:

​Tzm Sheet is a special alloy based on Mo. Fine dispersed Ti-carbides are the reason of excellent strength properties at temperatures up to 1400°C.

The average nominal chemical composition in weight%:
0.40-0.55 Ti
0.06-0.12 Zr
0.01-0.04 C
remainder Mo.Compared with pure Mo,Tzm Sheet has the following advantages:
1) better creep resistance
2) higher recrystallization temperature
3) better high-temperature strength
4) better welding properities
5) higher tensile strength

Tzm Sheet Specification

Molybdenum sheets/plates
Thickness(mm) tolerances(mm) width(mm) tolerances(mm) length(mm) tolerances(mm) flatness(%)
0.3mm ±0.02 600mm ±1mm 2000mm ±5mm < 2%
0.4mm ±0.03 600mm ±1mm 2000mm ±5mm < 2%
0.5mm ±0.03 600mm ±1mm 2000mm ±5mm < 2%
0.8mm ±0.05 600mm ±1mm 2000mm ±5mm < 2%
1mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
1.5mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
2mm ±0.06 600mm ±1mm 2000mm ±5mm < 2%
3mm ±0.2 500 ±1mm 500 ±2mm < 2%
4mm ±0.2 500 ±1mm 500 ±2mm < 2%

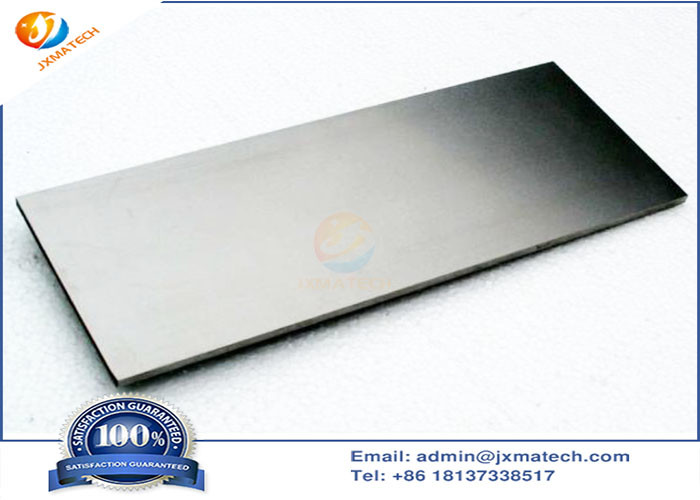

Tzm Sheet Picture:
0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace 0

0.3MM -4MM Tzm Sheet Plate In High Temperature Furnace 1


Use area
1) Sintering and heat treatment furnaces.
2) Boats for annealing and sintering process
3) Used in high-temperature furnace construction and metal working.
