Tungsten W Foil Tape
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JX |
| Certification: | ISO |
| Model Number: | Tzm Bar Titanium Zirconium Molybdenum |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | according to actual products |
| Packaging Details: | standard packing |
| Delivery Time: | 25days |
| Payment Terms: | T/T |
| Supply Ability: | 300kgs month |
|
Detail Information |
|||
| Size: | As Request | Quality: | ISO9001:2008 |
|---|---|---|---|
| Surface: | Polishing,burnishing,black Surface | Delivery Time: | 25days |
| Packing: | Standard Exporting | Name: | Tzm Bar Titanium Zirconium Molybdenum |
| Highlight: | 1595C Tzm Bar,1425C Tzm Bar,1425C Titanium Zirconium Molybdenum |
||
Product Description
Tzm Bar Titanium Zirconium Molybdenum
Tzm Bar is a particle-strengthened molybdenum based alloy containing titanium, zirconium and carbon. TZC is an improvement of TZM and has good heat treatment hardening effect.
Advantages of Tzm Bar Titanium Zirconium Molybdenum
Above 1100°C tensile strength is about twice that of unalloyed molybdenum
Better creep resistance
Higher recrystallization temperature
Better welding properties.
Tzm Bar Applications:
TZM is widely used in the aerospace, aviation and other industries. It could be used as nozzle material, valve body, gas piping materials, tubes in the gate material, die casting molds, extrusion dies and high temperature furnace heating element and heat shield etc.
General Properties:
Density: 10.16 g/cc at 20°C
Recrystallization Temperature: 1425 to 1595°C
Stress-Relief Temperature: 1 hour at 1095 to 1260°C
Liquidus Temperature: 2620°C
Chemical Composition:
TZM: Mo + 0.40~0.55%Ti + 0.06~0.12%Zr + 0.01~0.04% C
TZC: Mo + 1.2% Ti + 0.3% Zr + 0.1% C

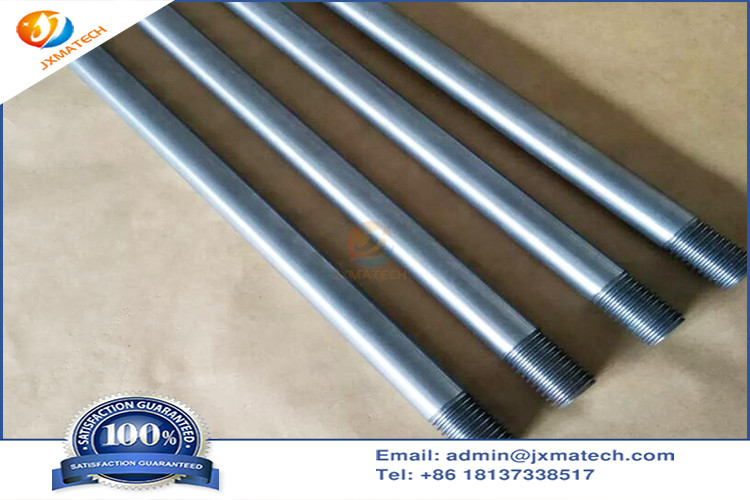

Tzm Bar Picture:
Size:
We offers all kinds of TZM/Tzm Bar , tzm molybdenum alloy,TZM plates and fabricated parts according to customers' drawings.
| Grade | Chief constituent % | The impurity content is not more than % | |||||||||||
| Mo | Ti | Zr | C | Al | Ca | Fe | Mg | Ni | Si | C | N | O | |
| Mo1 | - | - | - | 0.002 | 0.002 | 0.010 | 0.002 | 0.005 | 0.01 | 0.01 | 0.003 | 0.008 | |
| Mo2 | - | - | - | 0.005 | 0.004 | 0.015 | 0.005 | 0.005 | 0.01 | 0.02 | 0.003 | 0.020 | |
| moTi0.5 | 0.4- 0.6 |
- | 0.01- 0.04 |
0.002 | - | 0.010 | 0.002 | - | 0.01 | - | 0.001 | 0.003 | |
| TZM ASTM |
bal-anc-e |
0.4- 0.55 |
0.06- 0.12 |
0.01- 0.04 |
0.002 | 0.002 | 0.01 | 0.001 | 0.005 | 0.005 | - | 0.002 | 0.05 |
