Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: Wnife Tungsten Heavy Alloy Plate - China Wnife Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month
Contact Now

Detail Information
Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: Wnife Tungsten Heavy Alloy Plate - China Wnife Sheet

Product Description

Wnife Tungsten Heavy Alloy Plate - China Wnife Sheet

Tungsten Heavy Alloy Plate are materials with a high tungsten content and low amounts of Ni, Fe or Ni, Cu. Some tungsten alloy is added Co, Mo or Cr etc. Their densities could be as high as 16.8~18.8g/cc.
Advantages:
High density
Good machinability
Good mechanical properties
High modulus of elasticity
High absorption capacity against χ-rays and γ-rays
Harmless to the health and environment.

Tungsten Heavy Alloy Plate Chemical Composition, Physical:

Class Nominal Tungsten Density Hardness Tensile Strength Elongation
Weight% g/cm3 Rockwell C MPa %
1 90 16.85~17.25 24~32 700~1200(600~800) 20~33(4~8)
2 92.5 17.15~17.85 25~30 700~1400(500~600) 15~25(3~5)
3 95 17.75~18.35 25~35 700~1200 8~15
4 97 18.25~18.85 30~35 600~1000 8~14
Density g/cm 3 TRSN/ mm 2 Elogation % Elastic modulus kgf/ mm 2 HRC
16.8-18.5 650-950 3-16 2800-3300 25-31

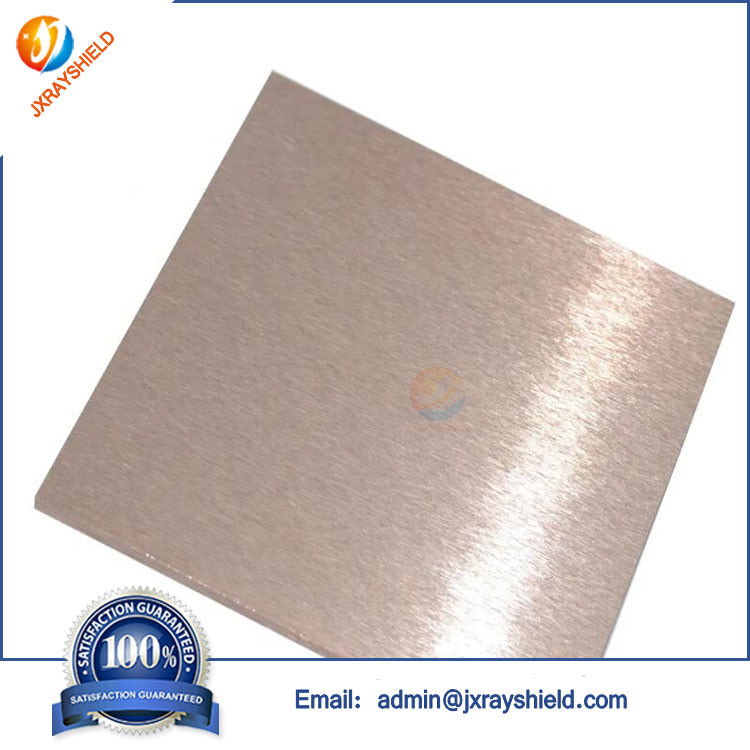

Tungsten Heavy Alloy Plate Picture:
Wnife Tungsten Heavy Alloy Plate - China Wnife Sheet 0Wnife Tungsten Heavy Alloy Plate - China Wnife Sheet 1

Tungsten Heavy Alloy Plate Applications:
Protection shields for nuclear radiation such as PET syringe shield, vial shield, isotope container, FDG container, multi leaf collimator
Balancing weights such as tungsten sinker bar, heavy metal boring bar, vessels crank camshafts, holders for well logging, racing weights, vibration damping and dynamic balancing weights
Substitutional material for Uranium
Electroheat upsetting anvil block
Balls in bomb
High voltage electrical contact
Electrodes for Resistance Welding
Product Standard: ASTM B 777-07



two series of Tungsten Heavy Alloys: W-Ni-Fe(magnetic) and W-Ni-Cu(nonmagnetic).
