Wolfram W Tungsten Filament
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Jinxing |
| Certification: | ISO |
| Model Number: | Tungsten Alloy Products Tungsten Carbide Balls |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | usd50-100 |
| Packaging Details: | standard packing |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2ton/month |
|
Detail Information |
|||
| Material: | K10 K15 Cemented Carbide Ball - Tungsten Carbide Balls | Size: | As Per Request |
|---|---|---|---|
| Shape: | As Per Request | Application: | Cutting Metal |
| Grade: | K10 | Name: | Tungsten Alloy Products Tungsten Carbide BallsTungsten Alloy Products Tungsten Carbide Balls |
| Highlight: | K15 Tungsten Alloy Products,K15 Cemented Carbide Ball,K10 Cemented Carbide Ball |
||
Product Description

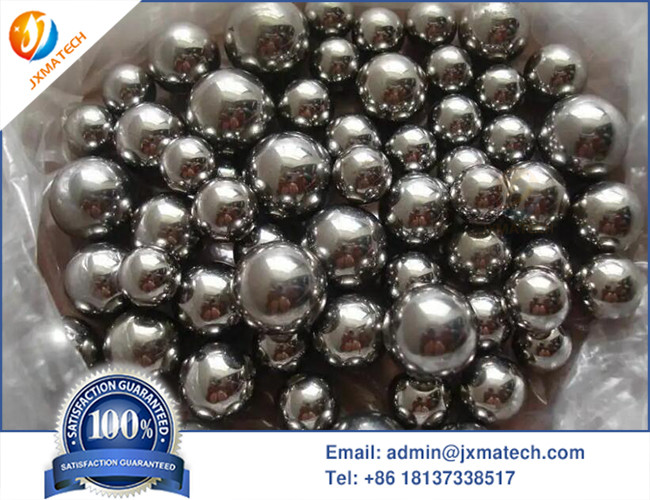

Tungsten Alloy Products Tungsten Carbide Balls
1, Diameter: 0.4-100.0mm
2, Surface: Sintering surface, Ground surface
3, Density: 14.0-14.9 g/cm3
4, Hardness: 1500 to 1600 HV
5, Composition: WC+Co, WC+TiC+TaC+Co
6, Applications: Valves, Pumps, Ball Screws, Measurement Standards, Gauging, Wear Parts.
Tungsten carbide has resistant-wearing, high fracture strength, high thermal conductivity, small heat expansion co-efficient. It is the best material to manufacture balls.
tungsten carbide balls are mainly used to precision hydraulic valves, high-load bearings, inertial navigation systems, ball screws, linear bearings in sideways, gauging and checking instruments, gas lift valves, plunger lift valves etc.
we provide the balls size from 3/16" upto 2", we also can make the customized size of the ball.
Please contact us for more information on our Tungsten Carbide (TC) Balls.
| ISO Code | Grade | Density (g/cm3) |
Hardness (HRA) |
TRS Mpa | Applications recommended |
| K05 | YG6X | 14.8-14.9 | 91-92 | >=2080 | Wear resistance Machining metals, woods |
| K10 | YG6A | 14.8-14.9 | 91.5-92.5 | >=2180 | |
| K20 | YG6 | 14.8-14.9 | 90.5-91.5 | >=2280 | |
| K30 | YG8 | 14.75-14.85 | 90-91 | >=2380 | |
| YN8 | 14.7-14.8 | 90-91 | >=2300 | Corrosion resistance Wear resistance |
|
| K40 | YG15 | 14.0-14.2 | 86-87.5 | >=2780 | Wear resistance Strong impact |
| MG1 | 5.0-6.0 | 91.5-92.5 | >=800 | Corrosion resistance Wear resistance |
|
| MG2 | 9.0-10 | 88.5-89.5 | >=1000 | ||
| MG3 | 12-13 | 90-91 | >=1200 |
Application: For making precision parts, precision bearings, instruments, pen, spray machine, water pump, mechanical parts, sealing valve, oil field etc.
synonym :tungsten carbide ball, cemented carbide ball, tungsten carbide valve ball, tungsten heavy ball
