Wcu Plate Tungsten Alloy Heat Sink Sheet Copper Tungsten Part
|Place of Origin:||China|
|Model Number:||Cemented Carbide Ball Bearings Tungsten Carbide Ball Blank|
Payment & Shipping Terms:
|Minimum Order Quantity:||10kgs|
|Packaging Details:||standard packing|
|Payment Terms:||L/C, T/T|
|Size:||As Per Request||Shape:||As Per Request|
|Name:||Cemented Carbide Ball Bearings Tungsten Carbide Ball Blank||Application:||Valves, Pumps, Ball Screws, Measurement Standards, Gauging, Wear Parts. Balls From This Material Are Also Used For Ballizing And Ball Pens.|
Cemented Carbide Ball Bearings,
Carbide Ball Bearings K10,
K10 Tungsten Carbide Ball Blank
Bearing Cemented Carbide Tungsten Carbide Ball Blank
1, Diameter: 0.4-100.0mm
2, Surface: Sintering surface, Ground surface
3, Density: 14.0-14.9 g/cm3
4, Hardness: 1500 to 1600 HV
5, Composition: WC+Co, WC+TiC+TaC+Co
6, Applications: Valves, Pumps, Ball Screws, Measurement Standards, Gauging, Wear Parts.
Tungsten carbide ball are widely used in ball valve and bearing. We can offer various grades and sizes. And the requirements of each procedure are stringent to ensure that the products produced must comply with your request. We adopt the advanced technical. The ball has the high endured causticity and high endure grind, which could improve the life of the bearing, while elevate the value of your products.
Regular sizes of tungsten carbide balls:
|Regular sizes (Stock product)|
|Dia.0.4 mm||Dia.0.5 mm||Dia.0.6 mm||Dia.0.7 mm||Dia.0.8 mm||Dia.1.0 mm||Dia.2.0 mm||Dia.2.381 mm||Dia.2.5 mm||Dia.3.0 mm|
|Dia.4.0 mm||Dia.4.763mm||Dia.5.0 mm||Dia.5.556 mm||Dia.6.0 mm||Dia.6.35 mm||Dia.7.0 mm||Dia.7.938 mm||Dia.8 mm||Dia.9.525 mm|
|Dia.10.0 mm||Dia.11.113mm||Dia.12 mm||Dia.12.7 mm||Dia.13.494 mm||Dia.14 mm||Dia.14.288 mm||Dia.15.0 mm||Dia.15.875 mm||Dia.16 mm|

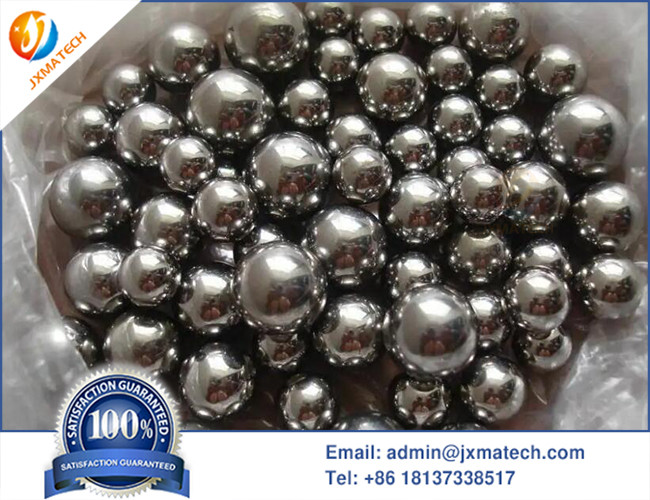

Tungsten carbide balls Picture:
Application: Tungsten carbide balls are used where extreme hardness and wear resistance is required; in such applications as bearings, ball screws, valves and flow meters.
•These balls are also used for coining and as pivots, detents and tips for gauges and tracers.
•Tungsten carbide is the most excellent seal face material in the seal material world.
•One of main reasons for using Tungsten Carbide is the additional wear resistance that can be achieved in both moving and static parts.
•This is particular the case in serve service conditions, such as high temperature,and high levels of corrosion and abrasion.
