Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed
Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed
Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed

Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium
Payment & Shipping Terms:
Minimum Order Quantity: 5kgs
Price: 30~150USD/kg
Packaging Details: Plywood case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M
Contact Now

Detail Information
Material: Zr 700,Zr 702.Zr 704,Zr 705 Standard: ASTM B551
Process: Grinding,Bending,Cutting Heat Treatment: Solution Annealed
Surface: Polishing,Alkali Cleaning,Chemical Cleaning,Black Oxide,etc. Density: 6.51g/cm3
Shape: Straight Or Tapered,with Or Without Cover,round Or Square Size: Dia.:40 Mm - 150mm Thickness:0.5-50mm
High Light:

Zirconium Crucible Bar

,

ASTM B551 Zirconium Bar

,

Solution Annealed Pure Zirconium Bar

Product Description

Pure Zirconium Crucible

Description:

Zirconium is a metal with strong corrosion resistance, which can form a dense oxide protective film almost instantaneously, which can cope with almost all acid corrosion. Pure zirconium crucibles have high purity (the content of zirconium is above 99.6%) and high melting point (up to 1855°C), which is an ideal material for melting other metals.Compared with nickel crucible and platinum crucible, pure zirconium crucibles have better mechanical strength at high temperature, better thermal stability, and higher cost performance.

Application:

Pure zirconium crucibles are often used as fluxes and fluxes in chemical processing, and are the most effective crucible materials for fusion using sodium carbonate or sodium peroxide. They must be used in an inert gas environment, which prolongs the life of the crucible and yields higher quality metal crystals, virtually eliminating sample contamination.The outstanding thermal conductivity and corrosion resistance of pure zirconium crucibles make them widely used in smelting industry, chemical corrosion resistant equipment and high temperature superconducting materials.




Machanical Properties:

Material State Rm (≥)/MPa Rp0.2 (≥)/MPa A50mm (≥)/%
Zirconium 702                  (UNS R60702) Annealed 379 207 16
Zirconium 704                  (UNS R60704) Annealed 413 241 14
Zirconium 705                  (UNS R60705) Annealed 552 379 16



Zirconium Crucible Sizes
Capacity Top Diameter Bottom Diameter Height
35 mL 40 mm 33 mm 40 mm
42 mL 45 mm 35 mm 44 mm
50 mL 45 mm 40 mm 42 mm
58 mL 50 mm 38 mm 45 mm

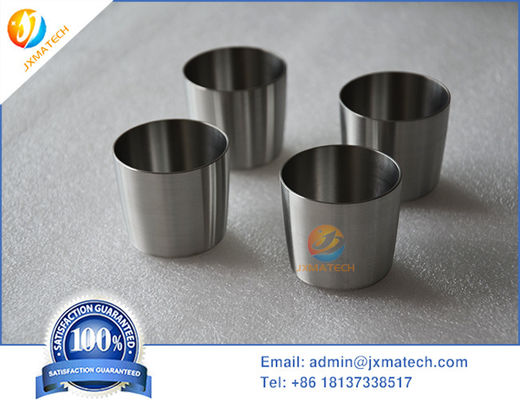

Pure Zirconium Crucible Pictures:

Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed 0

Pure Zirconium Crucible Bar ASTMB551 Zr702 Solution Annealed 1
