Detail Information
Product Name:	Tungsten 2.4*150mm Tungsten Welding Electrodes	Grade:	WT20
Density:	16.3 -18.5 G/cc	Purity:	W=80%
Tensile Strength:	730-1400 MPa	Elongation:	<10%
Application:	Fishing Weight
High Light:	Wy20 Yttrium Tungsten Welding Electrodes , 2.4*150mm Tungsten Welding Electrodes , 1400 MPa Tungsten Welding Electrodes

Product Description

Tungsten 2.4*150mm Tungsten Welding Electrodes Wy20 Yttrium

Yttrium -Tungsten Welding Electrode is primarily used in military and aviation industry with narrow arc beam, high compressing strength, highest welding penetration at medium and high current.

Tungsten Welding Electrode Parameter

Type	Designation	Current	Welding Method	Application
1% Lanthanated-Tungsten electrode	WL10	DC Small Current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
1.5% Lanthanated-Tungsten electrode	WL15	DC Small Current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
2% Lanthanated-Tungsten electrode	WL20	AC/DC Small/Large Current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
2% Thoriated- Tungsten Electrode	WT20	DC Large current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
2% Ceriated- Tungsten electrode	WC20	DC Small current	Manual welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
0.3% Zirconium-Tungsten electrode	WZr3	AC current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
0.8% Zirconium-Tungsten electrode	WZr8	AC current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
Pure Tungsten electrode	WP	AC current	Manual welding, automatic welding	Aluminum alloy, copper alloy, thermal spraying, special light source anode, etc
2% Yttrium- Tungsten electrode	WY20	AC Large current	Manual welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc

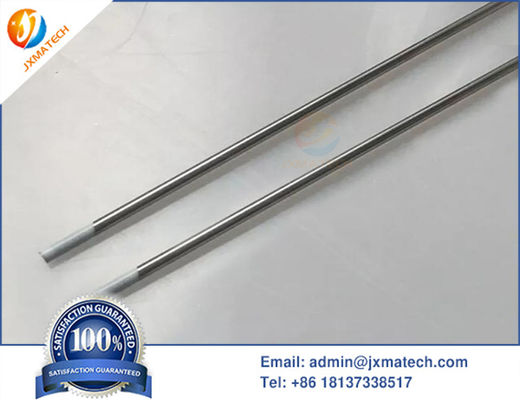

Tungsten Welding Electrode Picture:
2.4*150mm Tungsten Welding Electrodes Wy20 Yttrium 0

Models available:

1) We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated
tungsten, zirconiated tungsten, pure tungsten and yttrium tungsten.
2) Item style: WP, WT20, WC20, WZr3, WZr8, WL10, WL15, WL20, WY20
3) Diameter:1.0- 10.0mm
4) Length: 50.00mm, 75.00mm, 150.00mm, 175.00mm
5) Quality of surface: polish annealed, or ground annealed
6) Applications: GTAW / TIG welding and plasma welding, cutting

Tag:

Product Details:
Place of Origin:	CHINA
Brand Name:	JX
Certification:	ISO 9001
Model Number:	Wl,WT20
Payment & Shipping Terms:
Minimum Order Quantity:	10 kg
Price:	Negotiable
Packaging Details:	plywood cases
Delivery Time:	15-20 days
Payment Terms:	L/C, T/T, D/P, Western Union
Supply Ability:	2000 kg per month
