Tungsten Lanthanum Alloy Electrode Rod
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JX |
| Certification: | ISO 9001 |
| Model Number: | China 2%Thoriated Tungsten Electrode for TIG Welding Wt20 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 kg |
| Price: | Negotiable |
| Packaging Details: | plywood cases |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 kg per month |
|
Detail Information |
|||
| Product Name: | China 2%Thoriated Tungsten Electrode For TIG Welding Wt20 | Grade: | WT20 |
|---|---|---|---|
| Density: | 16.3 -18.5 G/cc | Purity: | W=80% |
| Tensile Strength: | 730-1400 MPa | Elongation: | <10% |
| Application: | Fishing Weight | ||
| High Light: | 2% Thoriated Tungsten Electrode,Tungsten Alloy Electrode TIG Welding,Wt20 Tungsten Alloy Electrode |
||
Product Description
We are one of the biggest professional Thoriated Tungsten Electrode and other related products manufacturers in China. We specializes in this field for years, so can provide different sizes according to your requirement with good quality and pretty competitive price.
Detailed description:
Thoriated Tungsten Electrodes contain about 2% of ThO2. It has much more advanced comprehensive welding performance than pure tungsten electrodes. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Thoriated Tungsten electrodes are the most commonly used tungsten material. Generally used for DC welding such as carbon steel, stainless steel, nickel alloy, titanium and copper.
| Type | Trademark | Added impurity | Impurity quantity % | Other impurities% | Tungsten % | Electric discharged power | Color sign |
| Thoriated Tungsten Electrodes | WT7 | Th02 | 0.7-0.9 | < 0.20 | The rest | 2.0-2.2 | ------ |
| WT10 | 0.8-1.2 | 2.6 | Yellow | ||||
| WT20 | 1.8-2.2 | 2.7 | Red | ||||
| WT30 | 2.8-3.2 | 3.0 | Purple | ||||
| WT40 | 3.8-4.1 | 3.5 | Orange |

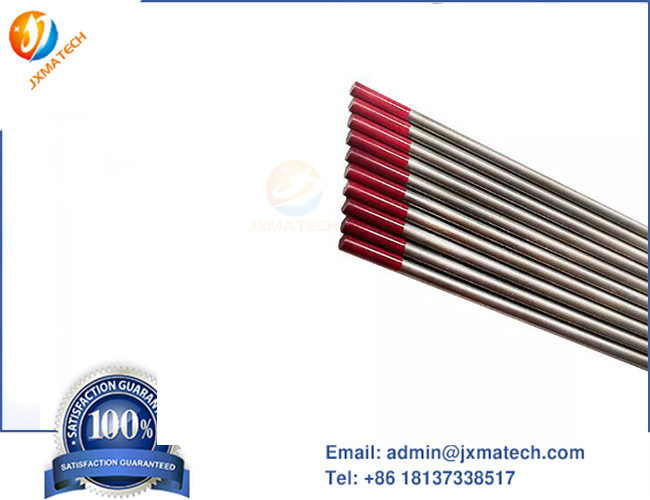

Thoriated Tungsten Electrode Picture:
More models available:
1) We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated
Tungsten, zirconiated tungsten pure tungsten.
2) Item: WP, WT7/20/30/40, WC15/20, WL10, WL10/15/20, WY, WZr3/8.
3) Diameter: 1.0- 10.0mm. etc
4) Length: 150/175.00mm. etc
5) Applications: GTAW / TIG welding and plasma welding, cutting
Listing description:
1. Good cutting
2. Good creep resistance
3. High recystallization temperature
4. Long term durability
5. Higher conductivity
