K10 Tungsten Carbide Welding Rod High Temperature Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K10- Tungsten Carbide Welding Rod
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Carbide Welding Rod Type: K10
Density: 14.5 G/cc Standard: ASTM B578-2011
Hardness: 95 HAR Elastic Modulus: 471 GPa
Packaging: Plywood Cases Application: Welding
High Light:

14.5 g/cc Tungsten Carbide Rod


K10 Tungsten Carbide Welding Rod


95 HAR Tungsten Carbide Rod

Product Description

High Temperature Resistance K10 Tungsten Carbide Welding Rod

Tungsten Carbide Welding Rod is mainly composed of tungsten carbide, tungsten carbide and cobalt-cobalt powder mixed by metallurgical methods such as crushing, ball milling, pressing and sintering. The main alloy composition is WC and Co. The content of WC and Co is different in different uses of tungsten carbide sheet, and it is widely used. Tungsten steel is one of the many materials of tungsten carbide. It is named after a rectangular sheet (or square), also known as a tungsten carbide.


Technological Process Tungsten Carbide Welding Rod

Pulverization → formulation according to application requirements → wet grinding → mixing → crushing → drying → screening → adding molding agent → re drying → preparing mixture after screening → granulation → pressing → forming → sintering → forming (blank) → flaw detection → packaging → warehousing

Tungsten Carbide Welding Rod Garde & Technical Parameters

Grade Co% Hardness
Flexural strength
Elastic modulus
Thermal expansion coefficient
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches

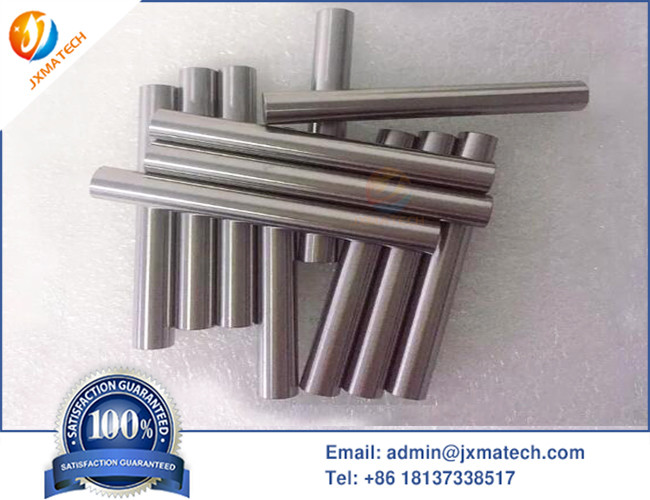

Tungsten Carbide Welding Rod Picture:
K10 Tungsten Carbide Welding Rod High Temperature Resistance 0K10 Tungsten Carbide Welding Rod High Temperature Resistance 1

Application range classification

  • Tungsten Carbide Welding Rod is suitable for high temperature processing. It can be used to manufacture cutting tools, furnace structural materials, jet engines, gas turbines, nozzles, etc. The ultra-coarse tungsten carbide powder raw material of ultra-coarse tungsten carbide co-carbide has a series of advantages such as complete crystal structure, less structural defects, high microhardness, small microstrain, and plasticity. The carbide alloy produced by it has good toughness, impact resistance, high hardness at high temperature, high thermal conductivity and small creep deformation. Widely used in mining tools, oil drilling and production tools, Cheler mining tools, tunnel engineering shield machine tools, stamping dies, composite rollers, hard surface spraying, metal surface spray welding and other fields.


Performance characteristics of Tungsten Carbide Welding Rod

Tungsten Carbide Welding Rod has high hardness, high hardness, good wear resistance, high elastic modulus, high compressive strength, good chemical stability (acid resistance, alkali resistance, high temperature oxidation resistance), low impact toughness, small expansion coefficient, thermal conductivity and other characteristics, its properties and electrical conductivity and iron and its alloy are similar.
