Corrosion Resistant K30 Tungsten Carbide Plates 465 GPa For Chemical Industry

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Tungsten Carbide Plates
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Carbide Plates Grade: K30
Density: 14.6 G/cc Standard: ASTM B578-2009
Hardness: 95 HAR Elastic Modulus: 465 GPa
Packaging: Export Plywood Cases Application: Corrosion Resistant Parts
Highlight:

Tungsten Carbide Plates Corrosion Resistant

,

Tungsten Carbide Plates For Chemical Industry

,

465 GPa Tungsten Carbide Plates

Product Description

Corrosion Resistant Parts K30 Tungsten Carbide Plates For Chemical Industry

Tungsten carbide plate is mainly made of WC tungsten carbide and cobalt powder through metallurgical mixing, crushing, ball milling, pressing and sintering. The main components are WC and Co. The content of WC and CO in tungsten carbide plates for different purposes is different, and the application range is wide. Tungsten carbide plate is one of many materials of tungsten carbide.



Technological Process of Tungsten Carbide Plates

Pulverization → formulation according to application requirements → wet grinding → mixing → crushing → drying → screening → adding molding agent → re-drying → preparing mixture after screening → granulation → pressing → forming → sintering → forming (blank) → flaw detection → packaging → warehousing




Tungsten Carbide Plates Garde & Technical Parameters

Grade Co% Hardness
HAR
Density
g/cm
Flexural strength
MPa
Elastic modulus
GPa
Thermal expansion coefficient
10/C
Application
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches

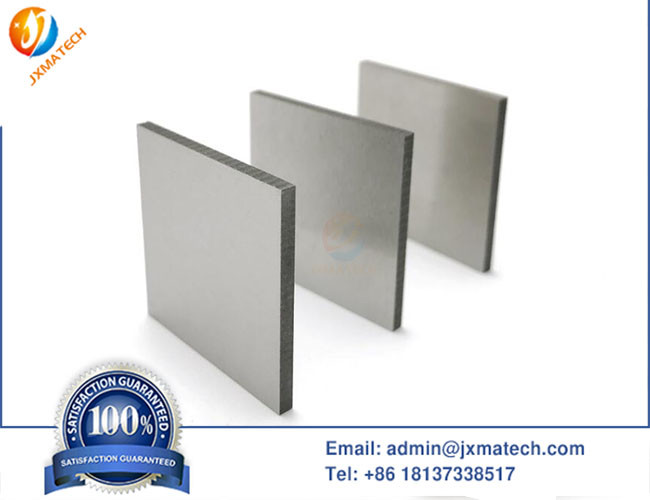

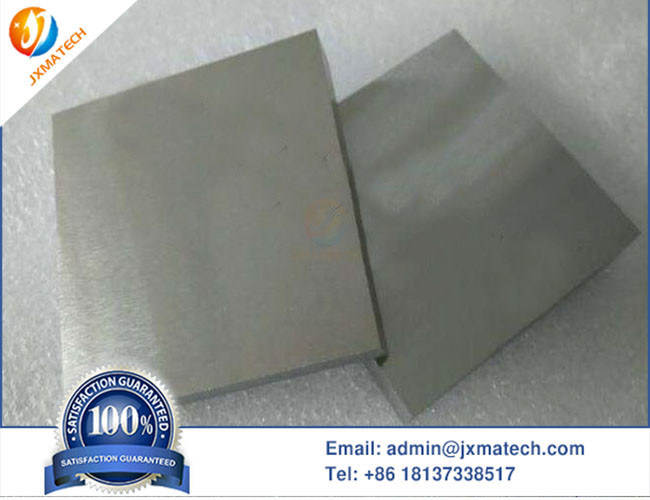

Tungsten Carbide Plates Picture:
Corrosion Resistant K30 Tungsten Carbide Plates 465 GPa For Chemical Industry 0Corrosion Resistant K30 Tungsten Carbide Plates 465 GPa For Chemical Industry 1Corrosion Resistant K30 Tungsten Carbide Plates 465 GPa For Chemical Industry 2



Performance characteristics of Tungsten Carbide Plates

Cemented carbide sheet has excellent hardness, high hardness, good wear resistance, high elastic modulus, high compressive strength, good chemical stability (acid and alkali resistance and high temperature oxidation), low impact toughness, low expansion coefficient, heat resistance. Good and other advantages.



Scope of application

Tungsten carbide plate is mainly used for manufacturing high-speed mold and multi-station progressive mold, used for stamping copper, aluminum, stainless steel, cold rolled plate, EI plate, Q195, SPCC, silicon steel plate, hardware, standard parts, upper and lower punching, etc. Table. It is also an excellent material for manufacturing high-temperature parts, wear-resistant parts, anti-shielding parts and corrosion-resistant parts. Tungsten carbide plate with suitable material should be selected according to the specific application situation.
