Cemented Tungsten Carbide Round Bar High Wear Resistance K20
Cemented Tungsten Carbide Round Bar High Wear Resistance K20 Cemented Tungsten Carbide Round Bar High Wear Resistance K20 Cemented Tungsten Carbide Round Bar High Wear Resistance K20 Cemented Tungsten Carbide Round Bar High Wear Resistance K20

Cemented Tungsten Carbide Round Bar High Wear Resistance K20

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K20 - Tungsten Carbide Round Bar
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Tungsten Carbide Round Bar Type: K20
Density: 14.6 G/cc Standard: ASTM B578-2010
Hardness: 95 HAR Elastic Modulus: 467 GPa
Packaging: Exporting Plywood Cases Application: Parts
High Light:

Tungsten Carbide Round Bar

,

High Wear Resistance Tungsten Bar

,

Cemented Tungsten Round Bar

Product Description

Cemented High Wear Resistance Tungsten Carbide Round Bar YG10

Tungsten Carbide Round Bar is mainly made from a mixture of tungsten carbide and cobalt powder, and are made by metallurgical methods such as crushing, pressing, and sintering. The main alloy composition is WC and Co., Ltd. The content of WC and Co is different and widely used. It is named after a rectangular plate (or square), also known as a tungsten carbide bar.

Application of Tungsten Carbide Round Bar

  • Widely used in high speed cutting tools, kiln structure materials, jet engine parts, metal ceramic materials, resistance heating elements, etc.

  • It is used for SMELTING CRUCible AND WEAR-RESISTING semiconductor FILM FOR MANUFACTURING cutting tools, weAR-resisting parts, copper, cobalt, bismuth and other metals.

  • Used as super hard tool material and wear resistant material. It can form solid solutions with many carbides. WC TIC carbide cutters have been widely used.

Tungsten Carbide Round Bar Garde & Technical Parameters

Grade Co% Hardness
HAR		 Density
g/cm		 Flexural strength
MPa		 Elastic modulus
GPa		 Thermal expansion coefficient
10/C		 Application
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches

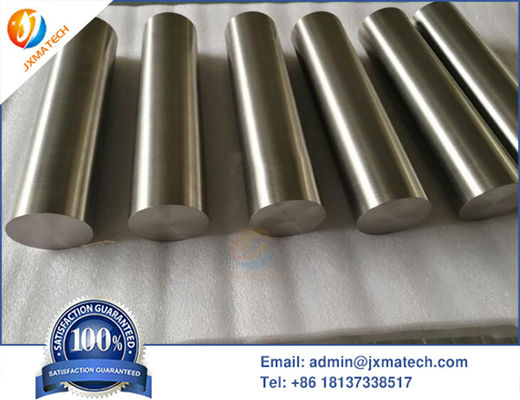

Tungsten Carbide Round Bar Picture:
Cemented Tungsten Carbide Round Bar High Wear Resistance K20 0Cemented Tungsten Carbide Round Bar High Wear Resistance K20 1

Cemented Tungsten Carbide Round Bar High Wear Resistance K20 2



Performance characteristics of Tungsten Carbide Round Bar

  • Tungsten Carbide Round Bar have good hardness, wear resistance, elastic modulus, high compressive strength and chemical stability (acid resistance, alkali resistance, high temperature resistance, oxidation resistance). At the same time, it has the characteristics of low impact toughness and low expansion coefficient. Its thermal conductivity and thermal conductivity are similar to those of iron and its alloys.
