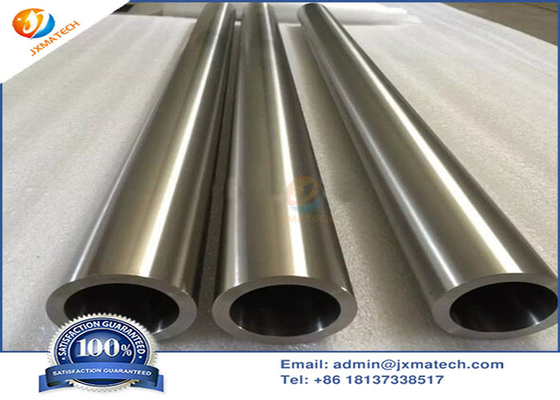

Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments
Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments

Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments

Product Details:
Place of Origin: china
Brand Name: JX
Certification: ISO
Model Number: Nickel Base Alloy Tube
Payment & Shipping Terms:
Minimum Order Quantity: 100kgs
Price: Negotiable
Packaging Details: Standard wooden case
Delivery Time: 35days
Payment Terms: L/C, T/T
Supply Ability: 3000T
Contact Now

Detail Information
Product Type: Nickel Base Alloy Tube Material: Feni Alloy
Carbon Content: Low Transport Package: Wooden Case
Shape: Round Bar Condition: Soft
Surface: Bright Origin: China

Product Description

Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments



Alloy-4J42 (Expansion alloy)
(Common Name: 42H Glass Sealing 42, Nilo42, N42, FeNi42)

4j42 Tube is mainly composed of iron, nickel elements. It is characterized with a fixed coefficient of expansion. Increase the thermal expansion coefficient and the Curie point with increase of nickel content.
4J42 alloy is widely used the structure of the sealing material in the electric vacuum industry.

4j42 Tube Normal composition%

Ni 41.5~42.5 Fe Bal. Co - Si ≤0.3
Mo - Cu - Cr - Mn ≤0.8
C ≤0.05 P ≤0.02 S ≤0.02 Al ≤0.1


Typical Physical properties

Density (g/cm3) 8.12
Electrical resistivity at 20ºC(Om*mm2/m) 0.61
Thermal conductivity, λ/ W/(m*ºC) 14.6
Curie point Tc/ ºC 360
Elastic Modulus, E/ Gpa 147



Coefficient of expansion

θ/ºC α1/10-6ºC-1 θ/ºC α1/10-6ºC-1
20~100 5.6 20~400 5.9
20~200 4.9 20~450 6.9
20~300 4.8 20~500 7.8
20~350 4.95 20~600 9.2


Typical Mechanical properties

Tensile Strength Elongation
Mpa %
490 35

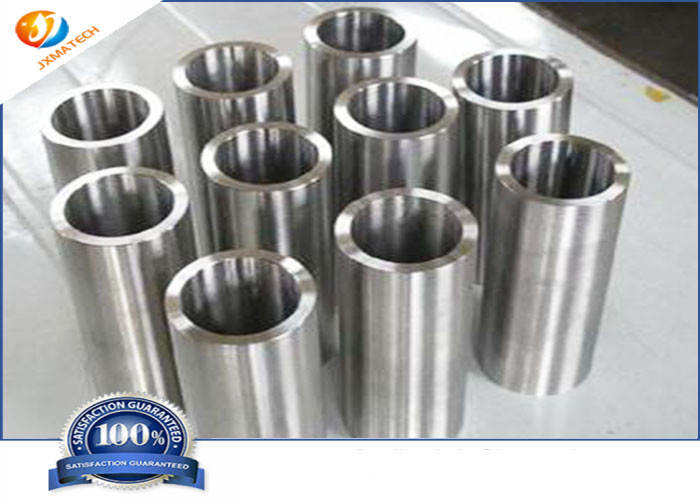

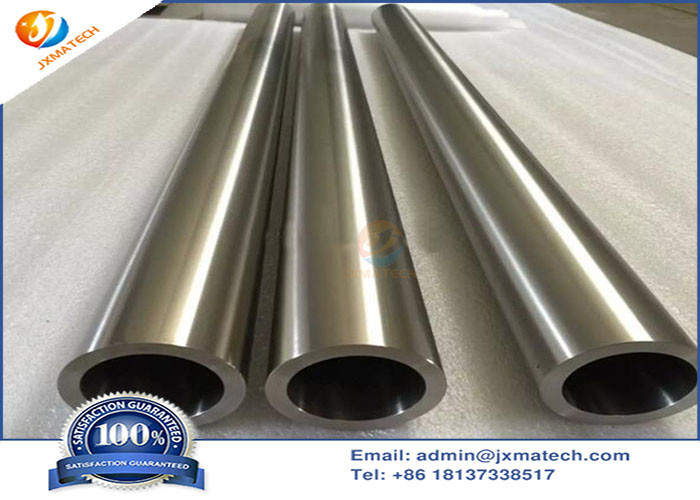

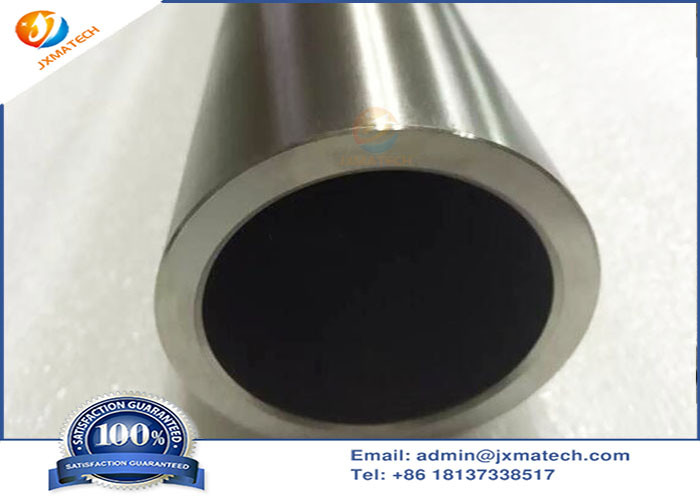

4j42 Tube Picture:
Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments 0Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments 1Nickel Base Alloy Tube Invar 42 4j42 Tube Sealing Aircraft Vacuum Instruments 2



The heat treatment process
Annealing Heated to 900 ±20ºC in a hydrogen atmosphere
Holding time, h 1 hour
cooling With speed not more than 5 ºC / min. cooling to below 200 ºC


Style of supply

Alloys Name Type Dimension
Alloy-4J42 Wire D= 0.1~8mm
Alloy-4J42 Strip W= 5~250mm T= 0.1mm
Alloy-4J42 Foil W= 10~100mm T= 0.01~0.1mm
Alloy-4J42 Bar Dia= 8~100mm L= 50~1000





FAQ

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
