WCu Electrode Plate For Resistance Welding

Product Details:
Place of Origin: CHINA
Brand Name: JX
Certification: ISO9001
Model Number: WCu
Payment & Shipping Terms:
Packaging Details: plywood cases
Delivery Time: 25 Days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 500kg per month

Detail Information

Grade: W50Cu50,W70Cu30,W75Cu25 Density: 16.75g/cm3
Thickness: 10-50mm Length: 100-1000mm
Width: 10-300mm Surface: Ground
Thermal Conductivity: 180-200(wm/k)

Product Description

WCu Electrode Plate For Resistance Welding Description

Tungsten has high melting point, high density, low expansion coefficient and high strength, while copper has good electrical and thermal conductivity, so the tungsten-copper composite material composed of tungsten and copper has all the excellent properties of the two metal elements, and can be changed The composition ratio controls and adjusts the mechanical properties of the alloy to suit actual application conditions. WCu Electrode Plate For Resistance Welding is generally made using powder metallurgy technology. In the resistance welding process, it plays the role of transferring heat energy and current, protecting the welding area and guiding the welding material, which can further improve processing accuracy and production efficiency. WCu Electrode Plate For Resistance Welding has excellent properties such as good plasticity, high high temperature strength, strong heat resistance, excellent perspiration cooling performance, good machining performance, good ablation resistance, good creep resistance, high cost performance, high welding quality, etc. It can also be used Used as high temperature resistant components, electronic equipment and mold materials, etc.

WCu Electrode Plate For Resistance Welding Specifications:

Grade WCu50,WCu30,WCu25,etc.
Technique Hot isostatic pressure,Rolling,Sintering,Forging,Annealing
Length <1000mm
Thickness 10-50mm
Width <200mm
Density 16.75g/cm3
Surface Polishing,Alkali Cleaning,Machining,Grinding,Ground,etc.
Hardness ≥184HV
Standard ASTM,GB
Certification ISO9001

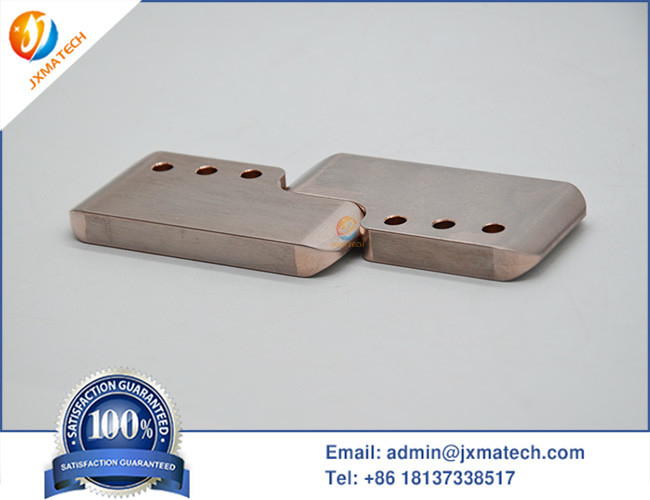

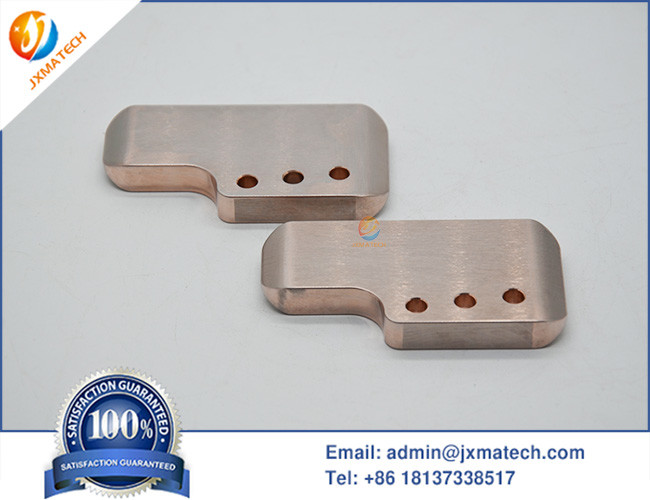

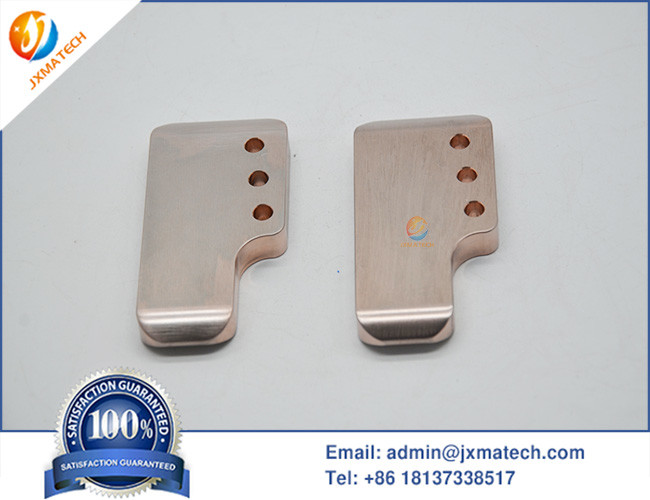

WCu Electrode Plate For Resistance Welding Pictures

WCu Electrode Plate For Resistance Welding 0WCu Electrode Plate For Resistance Welding 1
