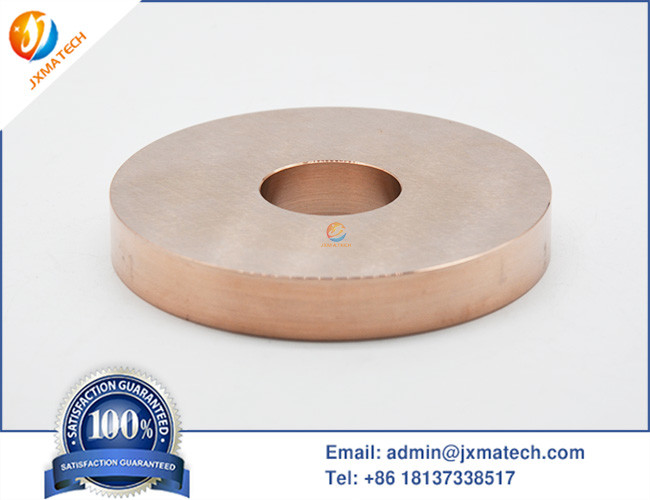

W70Cu30 Alloy Electrode Wheel For PCD Tools

Product Details:
Place of Origin: CHINA
Brand Name: JX
Certification: ISO9001
Model Number: W70Cu30
Payment & Shipping Terms:
Delivery Time: 25 Days

Detail Information

Thermal Expansion Coefficient: 6.5-7.5 X 10^-6/K Technique: Infiltering Process
Packing: Standard Exporting Outer Diameter: 30mm-300mm
Oem: Acceptable Working Temperature: 1800~2600
Export Port: Any Port In China Electrical Conductivity: 27% IACS
Surface: Polishing Applciation: PCD.EDM

Product Description

W70Cu30 Alloy Electrode Wheel For PCD Tools

Features & Description

W70Cu30 Alloy Electrode Wheel For PCD Tools Is another tungsten copper electrode material with very superior performance compared with the rod electrode, which has all the excellent characteristics of tungsten and copper, such as high temperature strength, high melting point, strong erosion resistance, good conductive thermal conductivity, fast heat dissipation, small contact surface damage, stable tissue structure, long service life and high cost performance. The W70Cu30 Alloy Electrode Wheel For PCD Tools is mainly used in electric spark processing and seam welding machine, the purpose is to repair the worn parts (PCD tools) in practical application, and can withstand continuous discharge processing, which not only maintains the welding quality and precision, but also improves the processing rate of the equipment. W70Cu30 Alloy Electrode Wheel For PCD Tools It is very suitable for continuous welding operations at the junction of sheet metal, and can also be used to weld key high temperature resistant and durable components needed in chemical, military, aviation, shipbuilding, construction and other fields.



Specifications:

Grade

W70Cu30
Technique Sintering,Annealing,Rolling,HIP,Machining,Injection Molding process
Outer Diameter 125-175mm
Thickness 5-10mm
Height 20-60mm
Hardness 85-100HRB
Density 14.1-15.3g/cm3
Surface Polished,Bright,Chemical Cleaning,Black Oxide,etc.
Shape Round
Standard ASTM B702,GB,JIS
Certification ISO9001



W70Cu30 Alloy Electrode Wheel For PCD Tools Pictures

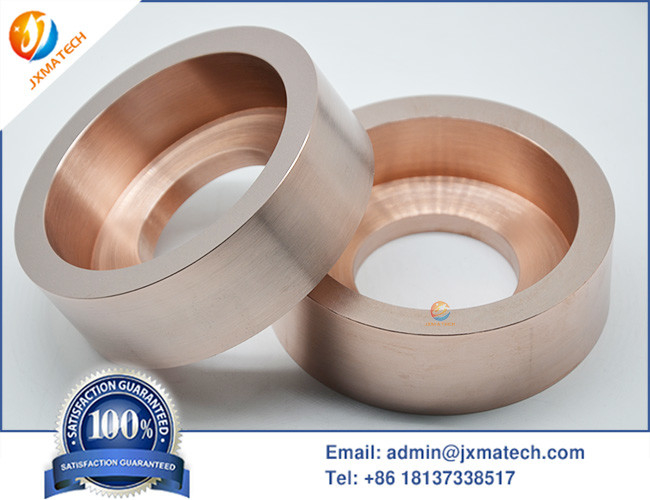

W70Cu30 Alloy Electrode Wheel For PCD Tools 0

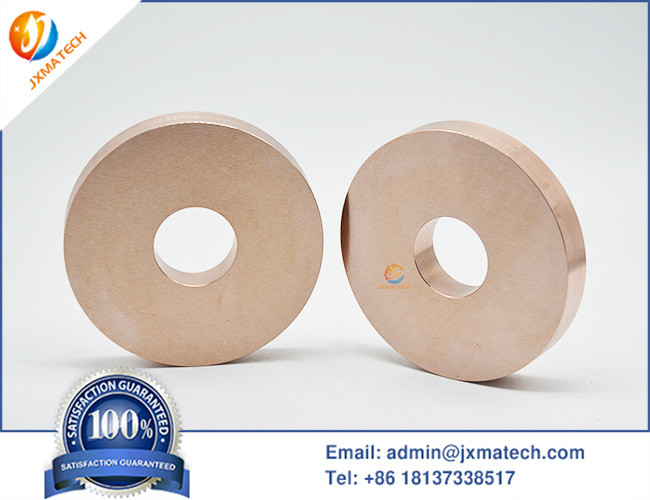

W70Cu30 Alloy Electrode Wheel For PCD Tools 1
