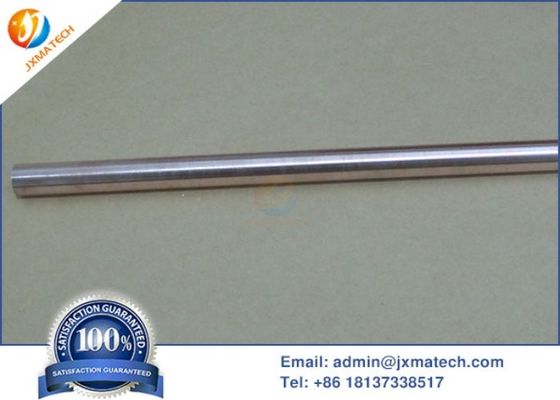

Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity
Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity
Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity

Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Copper Tungsten / WCu alloy
Payment & Shipping Terms:
Minimum Order Quantity: 5KGS
Price: 30~100USD/kg
Packaging Details: Plywood Case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M
Contact Now

Detail Information
Material: Tungsten Copper Type: RWMA Class 10,Class 11, Class 12
Content: W75, W85, W80, W55, W65, W90 Dimensions: Customized
Density: 12.2~17g/cm3 Surface: Polished And Grinding
Application: Resistance Welding , Spot Welding Grade: 1W3, 3W3 , 5W3, 10W3 , 30W3 ,3W53,10W53
High Light:

Tungsten Copper Bar With Good Electrical

,

Tungsten Copper Bar With Thermal Conductivity

,

Grinding Tungsten Copper Bar

Product Description

Tungsten Copper Bar, Elkonite® ASTM B702 RWMA Class 10,Class 11, Class 12



The tungsten copper bar is an alloy composed of tungsten and copper, and the copper content of the commonly used alloy is 10% to 50%. The alloy is prepared by powder metallurgy method and has good electrical and thermal conductivity, good high temperature strength and certain plasticity. At very high temperatures, such as above 3000C, the copper in the alloy is liquefied and evaporated.



  • Description

The tungsten copper bar is an alloy composed of tungsten and copper, and the copper content of the commonly used alloy is 10% to 50%. The alloy is prepared by powder metallurgy method and has good electrical and thermal conductivity, good high temperature strength and certain plasticity. At very high temperatures, such as above 3000C, the copper in the alloy is liquefied and evaporated, which absorbs a large amount of heat and lowers the surface temperature of the material. So this type of material is also known as metal sweating material.
Tungsten copper bar grade: WD10070;
Model: 55W45Cu, 68W32Cu, 70W30Cu, 75W25Cu, 80W20Cu, 85W15Cu, 90W10Cu.

Tungsten Copper Bar Physical and Mechanical Properties:

Composites Nominal Composition
(% Weight)		 Density
(g/cm3, ≥)		 Electrical Resistivity
(20°C, µΩ·cm, ≤)		 Electrical conductivity
(IACS%, ≥)		 Hardness(≥)
Brinell Hardness		 Bending Strength
MPa Kgf/mm2 MPa Kgf/mm2
CuW50 50% Copper
50% Tungsten		 11.85 3.2 54 1128 115 --- ---
CuW55 45% Copper
55% Tungsten		 12.3 3.5 49 1226 125 --- ---
CuW60 40% Copper
60% Tungsten		 12.75 3.7 47 1373 140 --- ---
CuW65 35% Copper
65% Tungsten		 13.3 3.9 44 1520 155 --- ---
CuW70 30% Copper
70% Tungsten		 13.8 4.1 42 1716 175 667 68
CuW75 25% Copper
75% Tungsten		 14.5 4.5 38 1912 195 706 72
CuW80 20% Copper
80% Tungsten		 15.15 5.0 34 2158 220 736 75
CuW85 15% Copper
85% Tungsten		 15.9 5.7 30 2354 240 765 78
CuW90 10% Copper
90% Tungsten		 16.75 6.5 27 2550 260 804 82





Elkonite Tungsten Copper Bar With Good Electrical And Thermal Conductivity 0



Tungsten Copper Bar are widely used where the combination of good electrical and/or thermal conductivity and low thermal deformation is necessary, for example:· In electric resistance welding as electrical contacts or heat sinks.· In electrodes for electrical discharge machining (EDM) and electrochemical machining (ECM).

Tag:

elkonite copper tungsten

copper tungsten alloy

copper tungsten rod
