W70Cu30 Alloy Electrode Wheel For PCD Tools
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Copper tungsten rod |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5KGS |
| Price: | 30~100USD/kg |
| Packaging Details: | Plywood Case |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000kgs/M |
|
Detail Information |
|||
| Material: | Tungsten Copper | Type: | RWMA Class 10,Class 11, Class 12 |
|---|---|---|---|
| Content: | W75, W85, W80, W55, W65, W90 | Dimensions: | Customized |
| Density: | 12.2~17g/cm3 | Surface: | Polished And Grinding |
| Application: | Resistance Welding , Spot Welding | Grade: | 1W3, 3W3 , 5W3, 10W3 , 30W3 ,3W53,10W53 |
| High Light: | Tungsten Copper Alloy Rod,Tungsten Copper Alloy Rod Welding Electrode,Easy Cutting Processing Tungsten Copper Alloy |
||
Product Description

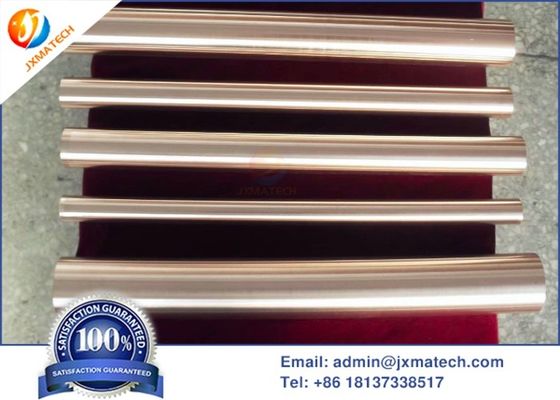

Copper tungsten rod material is an alloy of tungsten and copper, which combines the advantages of tungsten and copper, high temperature resistance, arc ablation resistance, high strength, high specific gravity, electrical conductivity, thermal conductivity, easy cutting and processing, and sweating cooling characteristics. As vacuum contact materials, electrode materials, electronic packaging materials and rocket, missile special-purpose materials, etc. are widely used in machinery, power, electronics, metallurgy, aerospace and other industries.
JINXING MATECH adopts isostatic pressing-high temperature sintering tungsten skeleton-copper infiltration process to produce various large and special-shaped parts with a copper content of 6-90%. The product has high purity, uniform structure and excellent performance. It can produce various sheets, rods, pipes, plates and small-sized products with complex shapes by compression molding, extrusion molding, and injection molding.
Tungsten copper bar grade: WD10070;
Model: 55W45Cu, 68W32Cu, 70W30Cu, 75W25Cu, 80W20Cu, 85W15Cu, 90W10Cu.
| Composites | Nominal Composition (% Weight) |
Density (g/cm3, ≥) |
Electrical Resistivity (20°C, µΩ·cm, ≤) |
Electrical conductivity (IACS%, ≥) |
Hardness(≥) Brinell Hardness |
Bending Strength | ||
| MPa | Kgf/mm2 | MPa | Kgf/mm2 | |||||
| CuW50 | 50% Copper 50% Tungsten |
11.85 | 3.2 | 54 | 1128 | 115 | --- | --- |
| CuW55 | 45% Copper 55% Tungsten |
12.3 | 3.5 | 49 | 1226 | 125 | --- | --- |
| CuW60 | 40% Copper 60% Tungsten |
12.75 | 3.7 | 47 | 1373 | 140 | --- | --- |
| CuW65 | 35% Copper 65% Tungsten |
13.3 | 3.9 | 44 | 1520 | 155 | --- | --- |
| CuW70 | 30% Copper 70% Tungsten |
13.8 | 4.1 | 42 | 1716 | 175 | 667 | 68 |
| CuW75 | 25% Copper 75% Tungsten |
14.5 | 4.5 | 38 | 1912 | 195 | 706 | 72 |
| CuW80 | 20% Copper 80% Tungsten |
15.15 | 5.0 | 34 | 2158 | 220 | 736 | 75 |
| CuW85 | 15% Copper 85% Tungsten |
15.9 | 5.7 | 30 | 2354 | 240 | 765 | 78 |
| CuW90 | 10% Copper 90% Tungsten |
16.75 | 6.5 | 27 | 2550 | 260 | 804 | 82 |
Copper tungsten rod are widely used where the combination of good electrical and/or thermal conductivity and low thermal deformation is necessary, for example:· In electric resistance welding as electrical contacts or heat sinks.· In electrodes for electrical discharge machining (EDM) and electrochemical machining (ECM).
