W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material
W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material

W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: Tungsten Copper Alloy in Electronic Packaging Material
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month
Contact Now

Detail Information
Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: Tungsten Copper Alloy In Electronic Packaging Material
High Light:

Tungsten Copper Alloy W70Cu30

,

W60Cu40 Tungsten Copper Alloy

,

Electronic Packaging Tungsten Copper Alloy

Product Description

​Tungsten Copper Alloy in Electronic Packaging Material

Material: W50-90Cu10-50
Brand:W55Cu45,W60Cu40,W70Cu30, W75Cu25, W80Cu20, W85Cu15, W90Cu10
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
Tungsten Copper Alloy rods size: dia(3.0-200mm)*L
Tungsten Copper Alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu Flatness tolerance:<4um
WCuRoughness:Ra1.6-Ra0.8
WCuSurface: polished, ground.
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
Tungsten Copper Alloy sheet size see following attachmentWCu tungsten copper alloy application and performance:
1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors;
2. Electrodes in electric spark erosion cutting machines;
3. Electrodes for resistance welding;used where the combination of high heat resistance, high electrical
4. Some of the applications are in electric resistance welding, as electrical contacts, and as heat sinks.
5. As contact material the alloy is resistant to erosion by electric arc. WCu alloys are also used in electrodes for electrical discharge machining and electrochemical machining.

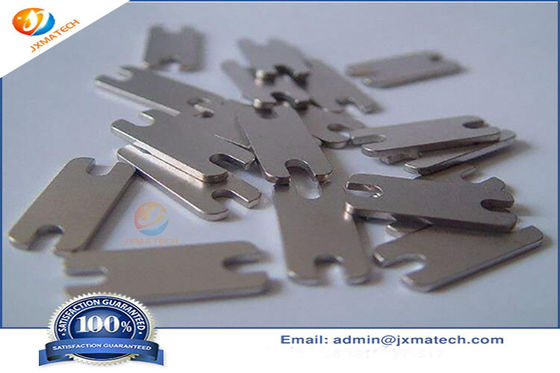

​Tungsten Copper Alloy Picture:
W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material 0W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material 1W60Cu40 W70Cu30 Tungsten Copper Alloy In Electronic Packaging Material 2

Name Tungsten Copper Alloy Rod
Tungsten content Cu-W75,Cu-W80,Cu-W85,Cu-W90,Cu-W95
Other products Plate, bars, tubes, round and processing according to your drawings.
Size Dia. (4-200) * L (customized)
Brand Chemical content (%) Density
(g/cm3)		 Resistance
(uΩ/cm)		 IACS
(%)		 Hardness
HB
Cu Impurity W
Cu-W70 30±2 0.5 balance 14.1 4.1 42 115
Cu-W75 25±2 0.5 balance 14.7 4.5 38 195
Cu-W80 20±2 0.5 balance 15.4 5 34 220
Cu-W85 15±2 0.5 balance 16.2 5.7 30 210
Cu-W90 10±2 0.5 balance 17 6.5 27 260
Cu-W95 5±2 0.5 balance 17.8 7.5 24 -
Application Tungsten copper Alloy (W-Cu alloy) is the composite of tungsten and copper which own it excellent performance of tungsten and copper. It is used widely in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation.
