W70Cu30 Alloy Electrode Wheel For PCD Tools
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JX |
| Certification: | ISO |
| Model Number: | Pure Copper Tungsten Sheet |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | according to actual products |
| Packaging Details: | standard packing |
| Delivery Time: | 25days |
| Payment Terms: | T/T |
| Supply Ability: | 300kgs month |
|
Detail Information |
|||
| Size: | As Request | Quality: | ISO9001:2008 |
|---|---|---|---|
| Surface: | Polishing,burnishing,black Surface | Delivery Time: | 25days |
| Packing: | Standard Exporting | Name: | Pure Copper Tungsten Sheet |
| High Light: | Copper Tungsten Sheet CuW50,Copper Tungsten Sheet CuW55,Copper Tungsten Sheet CuW60 |
||
Product Description
Pure Copper Tungsten Sheet
1. Main grades: CuW50, CuW55, CuW60, CuW65, CuW70, CuW85
2. Length: 5mm-200mm
3. Width: 5mm-200mm
4. Thickness: 0.1mm-5.0mm
5. Semi-finished or finished (nickel/gold) products can be provided
Copper-tungsten sheet is a composite material of tungsten and copper. The coefficient of thermal expansion (CTE) of the composite can be designed by controlling the content of tungsten to match with ceramic (Al2O3, BeO), semiconductor (Si), metal (Kovar) and other materials. Widely used in RF, microwave, high-power diode packaging and optical communication systems and other fields.
It not only has the low expansion of tungsten and the high thermal conductivity of copper. Its expansion index and thermal conductivity can also be changed by changing the content of the material, which provides convenience for the use of the material. We can provide copper-tungsten sheets with various specifications and different tungsten ratios.
Advantages of copper tungsten alloy
High arc resistance and good electrical conductivity
High thermal conductivity
low thermal expansion

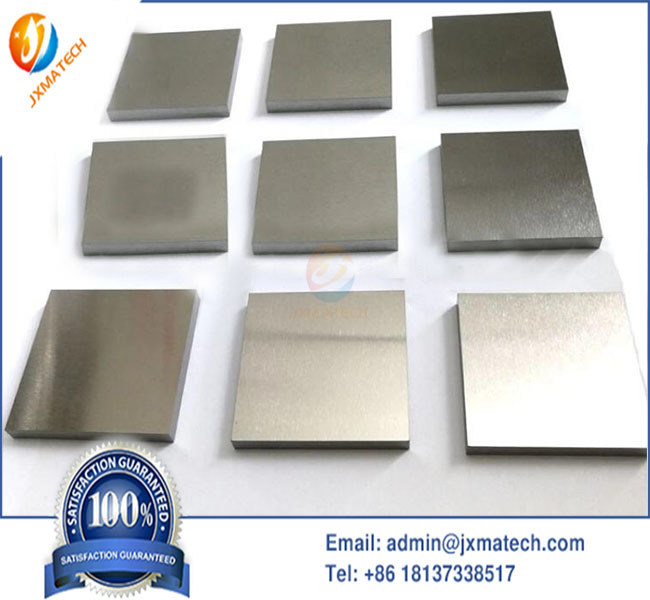

Copper Tungsten Sheet Picture:
| Composition (Wt%) |
W 90% Cu 10% |
W 88% Cu 12% |
W 85% Cu 15% |
W 80% Cu 20% |
| Density (g/cm3) |
17.0 | 16.6 | 16.4 | 15.5 |
| Coefficient of Thermal Expansion(10-6/K) |
5.6 | 5.7 | 5.8 | 7.0 |
| Thermal Conductivity (W/mK) |
180 | 188 | 196 | 220 |
| Specific Heat Capacity (J/kgK) |
155 | 165 | 175 | 190 |
| Young’s Modulus (Gpa) |
325 | 315 | 305 | 278 |
| Specific Electrical Resistance(uΩm) |
0.047 | 0.045 | 0.042 | 0.035 |
| Vickers Hardness (HV10) |
300 | 295 | 275 | 255 |
