W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion
W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion

W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: W75Cu25 - Copper Tungsten Bar
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Material: Copper Tungsten Bar Grade: W75Cu25
Size: Dia 3.5 - 50mm X L Density: 14.55 G/cc
Hardness: 177 HB Standard: ASTM B702-93 2012
Packaging: Plywood Cases Application: Welding Rods
High Light:

W75Cu25 Copper Tungsten Bar

,

Low Thermal Expansion Tungsten Bar

,

Electric Spark Welding Tungsten Bar

Product Description

Low Thermal Expansion W75Cu25 Copper Tungsten Bar For Electric Spark Welding

Copper Tungsten Bar is an alloy of tungsten and copper. Tungsten copper alloy is made of fine tungsten and copper powder through the first-class immersion sintering process and the process of isostatic pressing - high-temperature sintering tungsten skeleton - copper infiltration.



Specifications of Copper Tungsten Bar

Code No.

 Chemical Composition % Mechanical properties
CU Impurity W Density (g/cm3 ) Hardness HB RES( cm) Conductivity IACS/ % TRS/ Mpa
CuW(50) 50±2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45± 2.0 0.5 Balance 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Balance 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Balance 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Balance 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Balance 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Balance 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Balance 16.75 260 6.5 27 1160

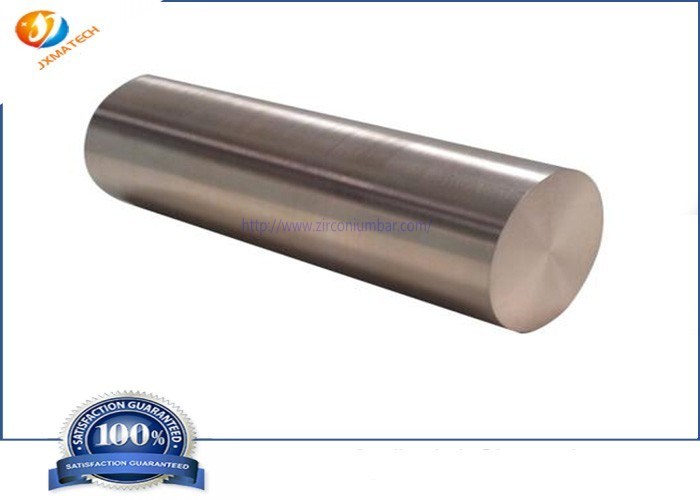

Copper Tungsten Bar Picture:
W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion 0W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion 1W75Cu25 Copper Tungsten Bar For Electric Spark Welding Low Thermal Expansion 2

Physical properties of Copper Tungsten Bar

  • Tungsten copper alloy (tungsten W=70 copper Cu=30)

  • Conductivity% IACS ≥ 42

  • Density=14g/cm3

  • Softening temperature ℃ ≥ 700

  • Tensile strength ≥ 66Mpa

  • Hardness ≥ 184HV

  • Tungsten copper alloy can withstand nearly 2000 ℃ high temperature and high stress. It has the characteristics of high melting point, high hardness, resistance to burning and good resistance to adhesion. The surface finish of electric erosion products is high, the precision is extremely high, and the loss is low.



Applications of Copper Tungsten Bar

  • Tungsten copper alloy is widely used as the contact and protective ring of high-voltage and superhydraulic switches and circuit breakers, the material of electric heating block block, the conductive nozzle of automatic submerged arc welding, the nozzle of plasma cutting machine, as well as the welding head of electric welding machine and butt welding machine, the roller welding wheel, as well as the materials for making sealing gas socket electrode and electric spark electrode, spot welding, butt welding, etc
