High Thermal Conductivity Tungsten Copper Alloy W70Cu30 Electrode For Welding

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: W70Cu30 - Copper Tungsten Alloy Electrode
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, D/P, L/C, D/A, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Material: Copper Tungsten Alloy Electrode Grade: W70Cu30
Size: Dia 3.5 - 20mm X L Density: 14.6 G/cc
Hardness: 178 HB Standard: ASTM B702-93 2019
Packaging: Plywood Case Application: Welding
High Light:

High Thermal Conductivity Tungsten Copper Alloy

,

W70Cu30 Tungsten Copper Alloy Electrode

,

Tungsten Copper Alloy Electrode For Welding

Product Description

High Thermal Conductivity W70Cu30 Copper Tungsten Alloy Electrode For Welding

Copper Tungsten Alloy Electrode is an alloy composed of tungsten and copper. The copper content of common alloy is 10%~50%. The alloy is made of powder metallurgy and has good conductivity, thermal conductivity, high temperature strength and certain plasticity. At very high temperatures, such as above 3000 ℃, copper in the alloy will liquefy and evaporate, absorb a lot of heat, and reduce the surface temperature of the material. Therefore, this material is also called metal sweat.



Advantages of Copper Tungsten Alloy Electrode

  • Edm electrode: When tungsten steel and high temperature resistant superhard alloy die need electric corrosion, the ordinary electrode loss is large, slow. However, tungsten copper has high corrosion rate, low loss rate, accurate electrode shape and excellent machining performance, which can greatly improve the precision of machining parts.

  • High voltage discharge tube electrode: when the high pressure vacuum discharge tube is working, the temperature of the contact material will rise to thousands of degrees Celsius in a few tenth of a second. However, the high temperature corrosion resistance, high toughness, good electrical and thermal conductivity of tungsten and copper provide the necessary conditions for stable operation of the discharge tube.



Specifications of Copper Tungsten Alloy Electrode

Code No.

Chemical Composition % Mechanical properties
CU Impurity W Density (g/cm3 ) Hardness HB RES( cm) Conductivity IACS/ % TRS/ Mpa
CuW(50) 50±2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45± 2.0 0.5 Balance 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Balance 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Balance 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Balance 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Balance 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Balance 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Balance 16.75 260 6.5 27 1160

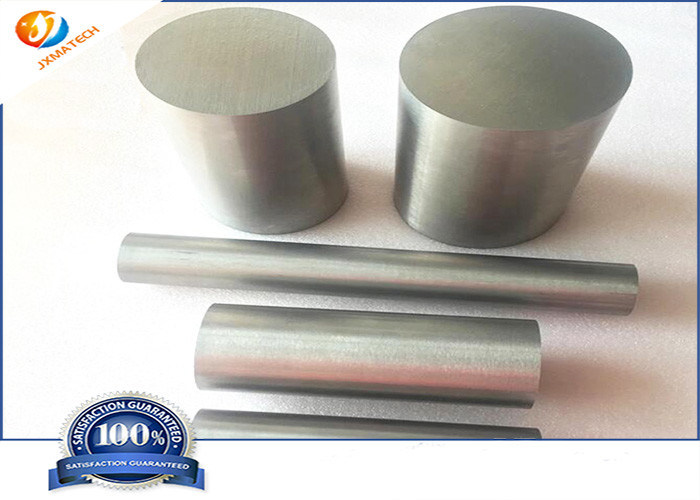

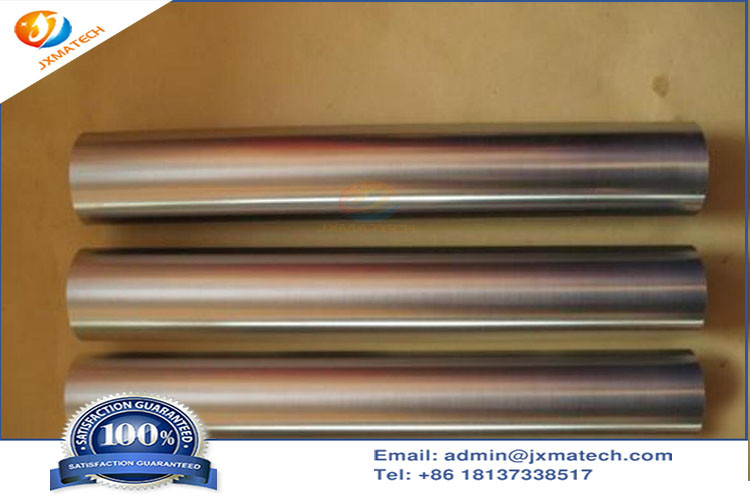

Copper Tungsten Alloy Electrode Picture:
High Thermal Conductivity Tungsten Copper Alloy W70Cu30 Electrode For Welding 0High Thermal Conductivity Tungsten Copper Alloy W70Cu30 Electrode For Welding 1High Thermal Conductivity Tungsten Copper Alloy W70Cu30 Electrode For Welding 2





Applications of Copper Tungsten Alloy Electrode

  • Tungstin-copper alloys are widely used in the manufacture of high voltage electrical switch contacts, rocket nozzle throat linings, tail rudder and other high temperature components, as well as electrodes for electrical processing, high temperature molds and other applications requiring high electrical and thermal conductivity and high temperature use.
