Cobalt 6B Round Bars,Cobalt Alloy 6b Rod,Cobalt Round Bar,Stellite 6 Bar

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO9001
Model Number: Cobalt 6B Round Bars
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: foam sheet inside and wooden case outside
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH

Detail Information

Material:: Cobalt Chrome Alloy Hardness:: 38-55HRC
Properties:: Wear And Corrosion And High Temperature Resistance Density:: 8.5-8.8g/cm3
Size:: OD 6-200mm Melting Point:: 1300 ℃

Product Description

Cobalt 6B Round Bars,Cobalt Alloy 6b Rod,Cobalt Round Bar,Stellite 6 Bar



Cobalt 6B Round Bars is a cobalt based electrode on a fully alloyed core wire and is used to combat wear elements such as heat, impact, corrosion and abrasion. The Cobalt 6B Round Bars is mainly suited to application where the main wear element is impact.

Alloy Nominal Analysis of Welding Electrode Other UNS ASME/AWS Hardness(HRC)
Co Cr W C Ni Mo Fe Si
Cobalt Base Alloy Bare Welding Electrodes
Stellite1 Bal. 32 12 2.45 ≤3 ≤1 ≤3 ≤2 ≤0.5 R30001 (SF)A5.21
ERCoCr-C
51-56
Stellite6 Bal. 30 4-5 1.2 ≤3 ≤1 ≤3 ≤2 ≤0.5 R30006 (SF)A5.21
ERCoCr-A
40-45
Stellite12 Bal. 30 8 1.4-1.8 ≤3 ≤1 ≤3 ≤2 ≤0.5 R30012 (SF)A5.21
ERCoCr-B
46-51
Stellite20 Bal. 33 16 2.45 ≤3 ≤1 ≤3 ≤2 ≤0.5 - - 53-59
Stellite21 Bal. 28 - 0.25 3 5.2 ≤3 ≤1.5 ≤0.5 R30021 (SF)A5.21
ERCoCr-E
28-40*
Stellite22 Bal. 28 - 0.3 1.5 12 ≤3 ≤2 ≤0.5 - - 41-49*
Stellite25 Bal. 20 14 0.1 10 ≤1 ≤3 ≤1 ≤0.5 - - 20-45*


Stellite is an excellent cemented carbide material resistant to wear, corrosion and high temperature oxidation. It is a form of cobalt-based alloy.Stellite alloy is mainly composed of cobalt, containing a considerable amount of nickel, chromium, tungsten and a small amount of molybdenum, niobium, tantalum, titanium and lanthanum. Depending on the composition of the alloy, starry alloy can be made into wire, powder used for hardfacing surfacing, thermal spraying, spray welding and other processes, as well as cast and forged parts and powder metallurgy parts.

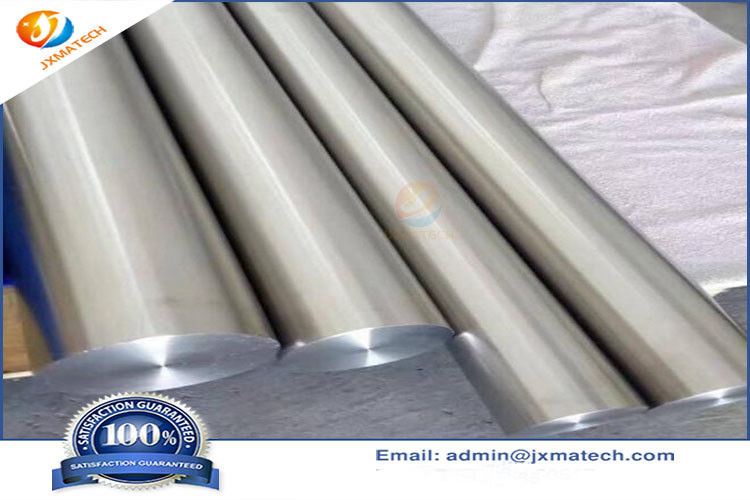

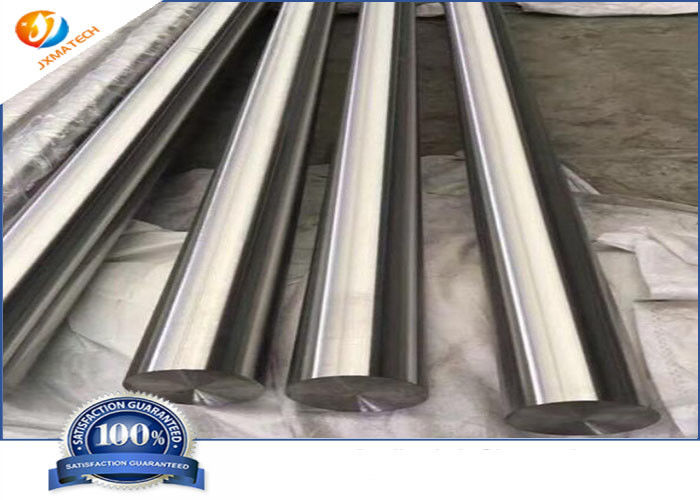

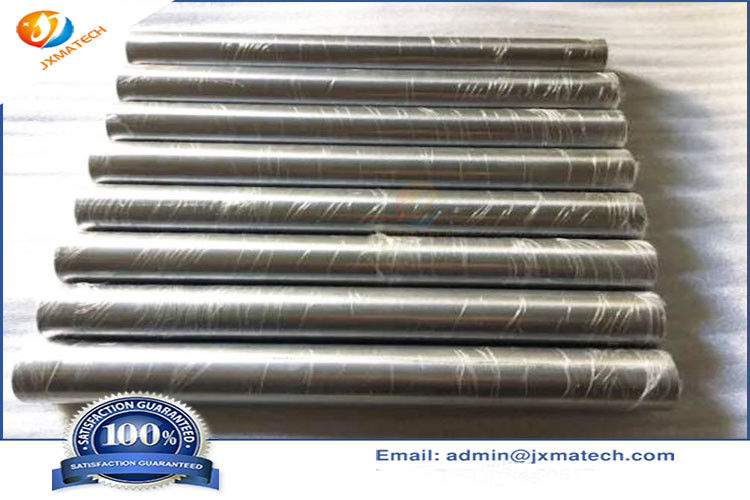

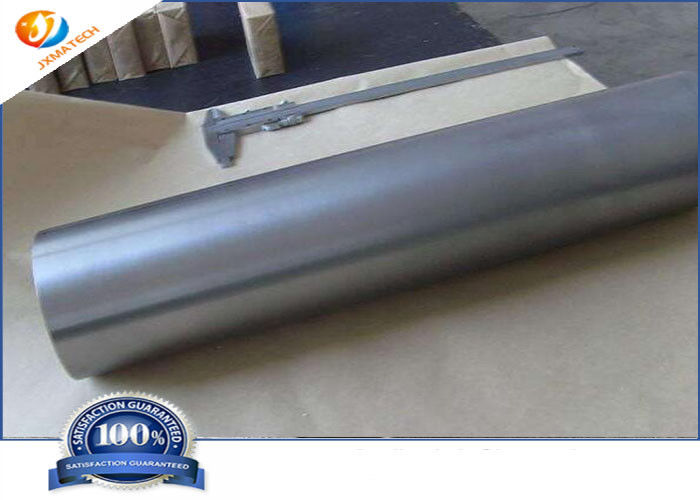

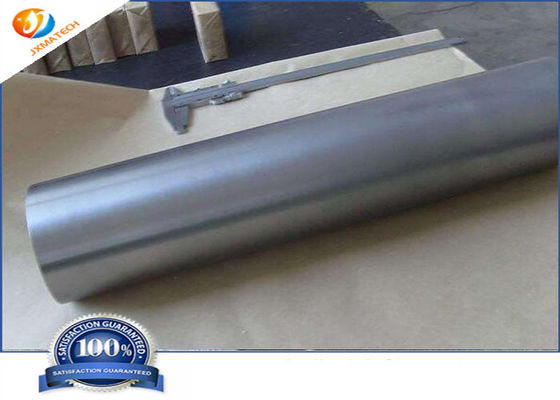

Cobalt 6B Round Bars Picture;

Cobalt 6B Round Bars,Cobalt Alloy 6b Rod,Cobalt Round Bar,Stellite 6 Bar 0

Cobalt 6B Round Bars,Cobalt Alloy 6b Rod,Cobalt Round Bar,Stellite 6 Bar 1

Cobalt 6B Round Bars,Cobalt Alloy 6b Rod,Cobalt Round Bar,Stellite 6 Bar 2

  Our Experience

  13 Year Experience in Heat-resistant Steel Field

  18 Year Expertise in Wear-resistant Material Field

  20 Year Customer-made High Quality Castings & Forgings
